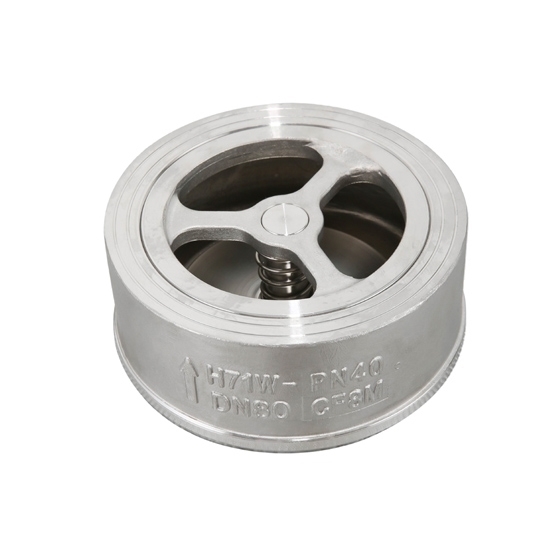

6" Stainless Steel Wafer Check Valve

0 reviews • Write a review

from

$298.08

Ex Tax: $298.08

Stock: In Stock
Model: RDDLZ-SSWCV-06
Weight: 1.00
SKU: RDDLZ-SSWCV-06

Available Options

Short Description

Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Quality wafer check valve, DN150, PN 4 MPa, is used to regulate and control the flow of fluid through a pipeline while preventing backflow. 6” stainless steel wafer type check valve can transfer water, gas and oil, suitable for aerospace or marine applications.

Specifications

Model: RDDLZ-H71W
Check Valve Type: Wafer
Nominal Diameter: 6 inch (150mm)
Nominal Pressure: 4 MPa
Product Material: 304/316 Stainless Steel
Connection Form: Clip
Temperature Range: -20°C~180°C
Weight: 6.9kg
Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	DISC	CF8/CF8M	1
3	SPRING	S201/S304	1
4	CAP	CF8/CF8M	1
Dimension (Unit: mm)
Φd	D	D1	L±1.5
135	202	210	95

Applications

Wafer check valve is a type of check valve that is used to regulate and control the flow of fluids through pipelines while preventing backflow. High quality wafer check valve is typically used in applications where space is limited, such as in HVAC systems, water treatment plants, and industrial processes.

Tips: Stainless Steel Wafer Check Valve vs. CPVC Wafer Check Valve

Stainless steel wafer check valves and CPVC (Chlorinated polyvinyl chloride) wafer check valves are two different types of wafer check valves that are used in different applications. Here are some of the key differences between these two types of valves:

Material: The primary difference between these two types of valves is the material they are made from. Stainless steel wafer check valves are made from stainless steel, which is highly resistant to corrosion and can withstand high temperatures and pressures. CPVC wafer check valves are made from a thermoplastic material that is resistant to corrosion and can withstand high temperatures and pressures.
Chemical Compatibility: Stainless steel wafer check valves are compatible with a wide range of fluids and chemicals, including acids and alkalis. CPVC wafer check valves are typically used in applications where the fluid being conveyed is non-corrosive and compatible with the thermoplastic material.
Temperature Range: Stainless steel wafer check valves can withstand a wider range of temperatures than CPVC wafer check valves.
Pressure Rating: Stainless steel wafer check valves typically have a higher pressure rating than CPVC wafer check valves.
