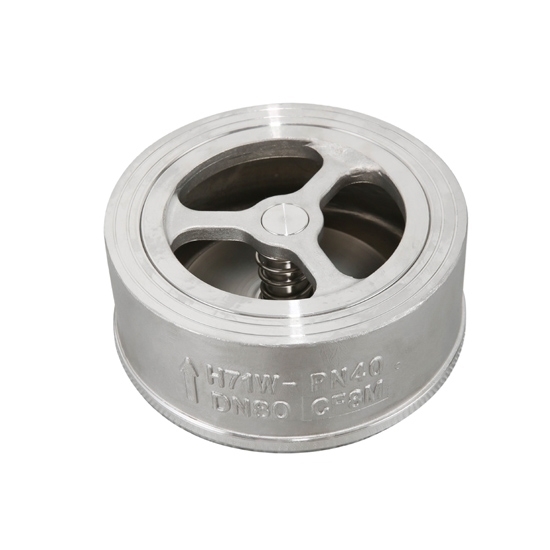

1" Stainless Steel Wafer Check Valve

0 reviews • Write a review

from

$60.38

Ex Tax: $60.38

Stock: In Stock
Model: RDDLZ-SSWCV-01
Weight: 1.00
SKU: RDDLZ-SSWCV-01

Available Options

Short Description

Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 1 inch wafer check valve for sale online. It is a high quality stainless steel wafer check valve with a 25 mm nominal diameter and 4 MPa nominal pressure, usually used in space limited applications such as HVAC systems, water treatment plants and industrial processes.

Specifications

Model: RDDLZ-H71W
Check Valve Type: Wafer
Nominal Diameter: 1 inch (25mm)
Nominal Pressure: 4 MPa
Product Material: 304/316 Stainless Steel
Connection Form: Clip
Temperature Range: -20°C~180°C
Weight: 0.43kg
Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	DISC	CF8/CF8M	1
3	SPRING	S201/S304	1
4	CAP	CF8/CF8M	1
Dimension (Unit: mm)
Φd	D	D1	L±1.5
21	67	68	27

Applications

Wafer check valve is a type of check valve that is used to regulate and control the flow of fluids through pipelines while preventing backflow. High quality wafer check valve is typically used in applications where space is limited, such as in HVAC systems, water treatment plants, and industrial processes.

Tips: What materials are wafer check valves made from?

Wafer check valves can be made from a variety of materials, including stainless steel, cast iron, ductile iron, and PVC. The choice of material will depend on the specific application, including the medium being transported and the temperature and pressure requirements.
