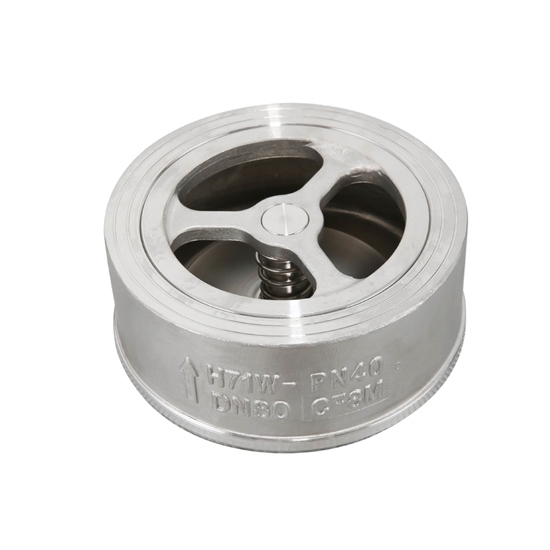

The provided 1-1/2 inch stainless steel wafer check valve is a non-return valve that regulates and controls the flow of fluid through a pipeline while preventing backflow. High-quality wafer check valve is often used in space-constrained applications such as HVAC systems, water treatment plants, and industrial processes.

Specifications

• Model: RDDLZ-H71W
• Check Valve Type: Wafer
• Nominal Diameter: 1-1/2 inch (40mm)
• Nominal Pressure: 4 MPa
• Product Material: 304/316 Stainless Steel
• Connection Form: Clip
• Temperature Range: -20°C~180°C
• Weight: 0.75kg
• Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Applications

Wafer check valve is a type of check valve that is used to regulate and control the flow of fluids through pipelines while preventing backflow. High quality wafer check valve is typically used in applications where space is limited, such as in HVAC systems, water treatment plants, and industrial processes.

Tips: Can wafer check valves be used in any orientation?

Wafer check valves are designed to be installed in a specific orientation, which is typically indicated by an arrow on the body of the valve. The arrow indicates the direction of flow through the valve, and the valve should be installed with the arrow pointing in the direction of the flow.

In general, wafer check valves are designed to work in any orientation as long as they are installed with the correct flow direction. However, some manufacturers may have specific guidelines for installation orientation depending on the application and the valve design.

It is important to follow the manufacturer's guidelines for installation orientation to ensure proper operation of the valve and prevent damage or failure. If you are unsure about the correct installation orientation for a wafer check valve, consult the manufacturer's instructions or contact a qualified professional for assistance.
