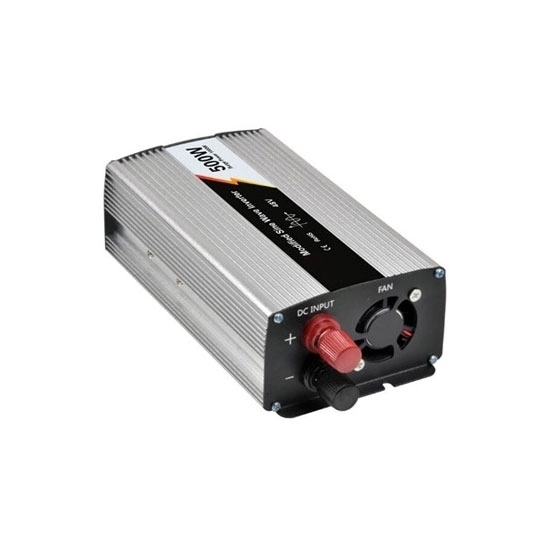

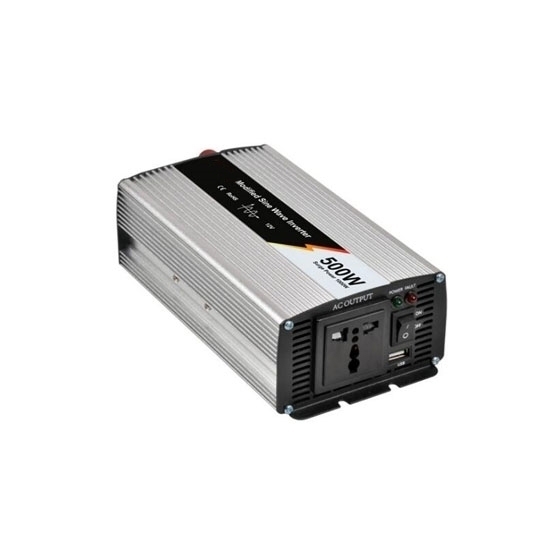

500 Watt Car Power Inverter, 12V DC To 110V AC

0 reviews • Write a review

from

$100.23

Ex Tax: $100.23

Stock: In Stock
Model: RDDLZ-PI-M500W
Weight: 1.00
SKU: RDDLZ-PI-M500W

Available Options

Short Description

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

500 Watt continuous and 1000 Watt peak power
110V or 220V AC household power outlet - power AC electronic devices in your vehicle
USB port – charge your smartphones, laptops, tablets and other USB-powered devices
Multiple safety protection - overvoltage, undervoltage, overload, over temperature, short circuit protection (reverse polarity connect)
Compact design, easy to use and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities where AC power is needed

Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.

500W Car Power Inverter Specification

Model	RDDLZ-M500W
Rated power	500W
Peak power	1000W
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input voltage	DC12V	DC24V	DC12V	DC24V
Output voltage	100VAC or 110VAC or 120VAC±5%		220VAC or 230VAC or 240VAC±5%
Unload current less than	0.3A	0.1A	0.3A	0.1A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 1A
Max. efficiency	85%
Input voltage range	10-15.5V	20-31V	10-15.5V	20-31V
Low voltage alarm	10.5±0.5V	21±0.5V	10.5±0.5V	21±0.5V
Low voltage protection	10±0.5V	20±0.5V	10±0.5V	20±0.5V
Over voltage protection	15.5±0.5V	31±0.5V	15.5±0.5V	31±0.5V
Low voltage recover	12.3±0.5V	24±0.5V	12.3±0.5V	24±0.5V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	14.8V±0.5V	29.5V±0.5V
Protection function	Low voltage	Alarm at first; the voltage continuously reduces, LED Red light on & shut down.
	Over voltage	LED Red light on, shut down
	Over load	LED Red light on, shut down
	Over temperature	Alarm at first; the temperature continuously rises, LED Red light on & shut down
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature	-10℃ ~ +50℃
Storage temperature	-30℃ ~ +70℃
Dimension	221x106x63mm
Net./gross weight	755g/1020g
Warranty	1 year
Cooling method	Intelligent cooling fan

Details

12/24V DC to AC Power Inverter Wiring Diagram

Tips: Operating Environment for Power Inverter

1. Keep drying
It is not allowed to expose the inverter to some humid environments like rainy, snowy or frosty, foggy days and so on, and it is not allowed to have water droplets or oil on the inverter power supply.

2. Temperature control
The ambient temperature of the power inverter is better-controlled between 0 - 40℃.

3. Safety is first.
The power inverter cannot be installed in the battery, flammable materials area, fuel storage area and the fuel engine surrounding.

4. Keep ventilation
It should be keep at least 30 mm of ventilation space around the inverter, and make sure that the vents of the inverter are not blocked by any items.

5. Avoid dust
The power inverter cannot be installed in a dusty environment.

6. Battery or battery bank
Try not to use too long cable for wiring, but the inverter should be separated from the battery. Meanwhile, the battery cannot be exposed, because the gas produced by the battery is highly corrosive, and will damage the power inverter for a long time.

7. Ground connection
The power inverter should be safely grounded with wires or the earth wire is safely connected to your load.
