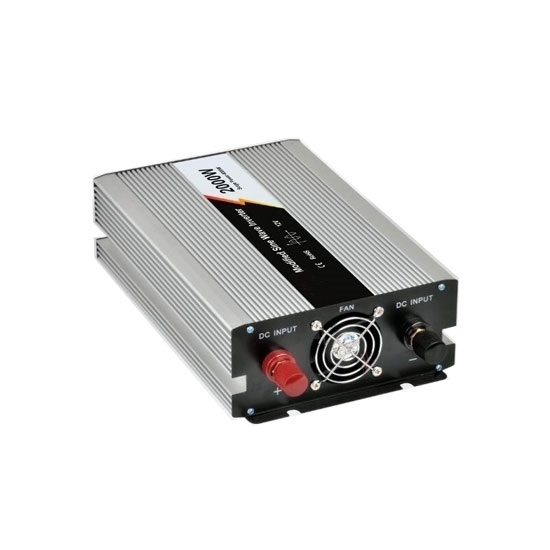

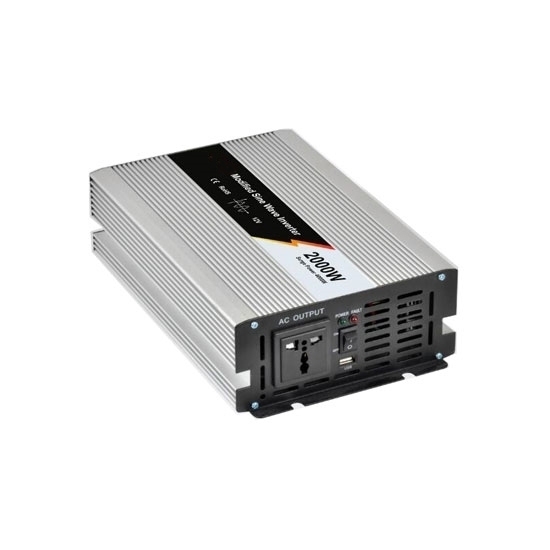

2000 Watt Car Power Inverter, 24V DC To 110V AC

0 reviews • Write a review

from

$272.67

Ex Tax: $272.67

Stock: In Stock
Model: RDDLZ-PI-M2000W
Weight: 1.00
SKU: RDDLZ-PI-M2000W

Available Options

Short Description

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

2000 Watt continuous and 4000 Watt peak power for relaible replenishment
Two AC household power outlets - plug in a wide range of electronics in your cars, trucks, SUVs, RVs, etc.
USB charging port – charge devices such as mobile phones, laptops, tablets and other USB-powered units
Multiple safety protection - overvoltage, undervoltage, overload, over temperature, short circuit protection (reverse polarity connect)
Durable construction, easy installation and high efficiency - best for use on road trips, vacations, work trips, camping and other outdoor activities
Built-in temperature-controlled cooling fan with low noise

Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.

2000W Car Power Inverter Specification

Model	RDDLZ-M2000W
Rated power	2000W
Peak power	4000W
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input voltage	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.8A	0.5A	0.2A	0.8A	0.5A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 1A
Max. efficiency	85%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±1V	10±0.5V	20±0.5V	40±1V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	12.3±0.5V	24±0.5V	48±1V	12.3±0.5V	24±0.5V	48±1V
Over voltage recover	14.8±0.5V	29.5±0.5V	59±1V	14.8±0.5V	29.5±0.5V	59±1V
Protection function	Low voltage - Alarm at first; voltage continuously reduces, LED Red light on & shut down.
	Over voltage - LED Red light on, shut down
	Over load - LED Red light on, shut down
	Over temperature - Alarm at first; temperature continuously rises, LED Red light on & shut down
	Short circuit - LED Red light on
	Input reverse polarity - Fuse burn-out
Working temperature	-10℃ ~ +50℃
Storage temperature	-30℃ ~ +70℃
Dimension	346x180x78mm
Net./gross weight	3600g/4400g
Warranty	1 year
Cooling method	Intelligent cooling fan

Details

12/24V DC to AC Power Inverter Wiring Diagram

Note: The connection of 48V power inverter with batteries is similar to the wiring of 24V inverter, and the batteries is connected in series.

Tips: Power inverter connection

1. Car inverter

The car inverter can be used after connecting to the cigarette lighter socket through the cigarette lighter. But it is only allowed to use electric appliances within 200W, otherwise the cigarette lighter will burn out due to the excessive power of the car inverter.

2. Household inverter

The power inverter is connected to the battery or battery back through the clamper. The red wire is connected to the battery positive pole, and the black wire is connected to the battery negative pole. The reverse polarity connection is not allowed, otherwise it damage the inverter and appliance. If the appliance to be powered is located far away from the battery, the inverter wiring is based on the principle: the wiring of the inverter and the battery is as short as possible, and the output line of the 110V or 220V AC is longer.
