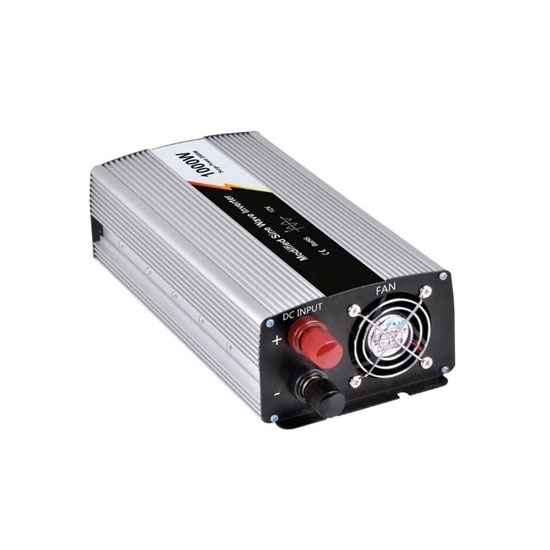

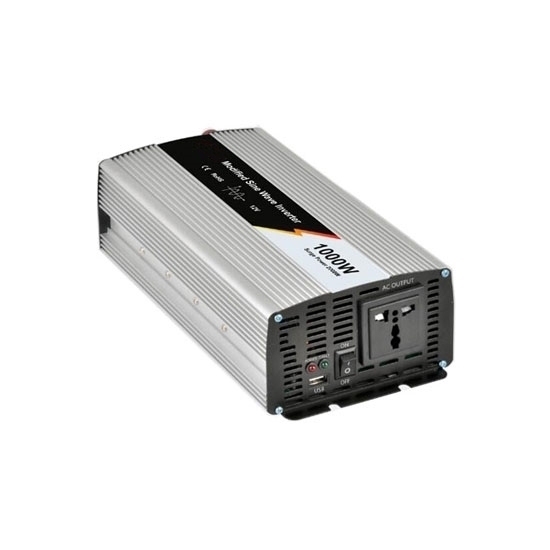

1000 Watt Car Power Inverter, 12V DC To 220V AC

0 reviews • Write a review

from

$154.54

Ex Tax: $154.54

Stock: In Stock
Model: RDDLZ-PI-M1000W
Weight: 1.00
SKU: RDDLZ-PI-M1000W

Available Options

Short Description

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

1000 Watt continuous and 2000 Watt surge power
AC household power outlet (Optional 110/120V/220V/230V/240V AC) - converting DC vehicle's power to AC power for electronic devices
USB port – charge your cell phones, laptops, tablets and other USB compatible devices
Multiple safety protection - overvoltage, undervoltage, overload, over temperature, short circuit protection (reverse polarity connect)
Durable housing, easy installation and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities where AC power is needed
Built-in temperature-controlled cooling fan with low noise

Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.

1000W Car Power Inverter Specification

Model	RDDLZ-M1000W
Rated power	1000W
Peak power	2000W
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input voltage	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.8A	0.5A	0.2A	0.8A	0.5A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 1A
Max. efficiency	85%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±1V	10±0.5V	20±0.5V	40±1V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	12.3±0.5V	24±0.5V	48±1V	12.3±0.5V	24±0.5V	48±1V
Over voltage recover	14.8±0.5V	29.5±0.5V	59±1V	14.8±0.5V	29.5±0.5V	59±1V
Protection function	Low voltage - Alarm at first; voltage continuously reduces, LED Red light on & shut down.
	Over voltage - LED Red light on, shut down
	Over load - LED Red light on, shut down
	Over temperature - Alarm at first; temperature continuously rises, LED Red light on & shut down
	Short circuit - LED Red light on
	Input reverse polarity - Fuse burn-out
Working temperature	-10℃ ~ +50℃
Storage temperature	-30℃ ~ +70℃
Dimension	308x135x78mm
Net./gross weight	1788g/2288g
Warranty	1 year
Cooling method	Intelligent cooling fan

Details

12/24V DC to AC Power Inverter Wiring Diagram

Note: The connection of 48V power inverter with batteries is similar to the wiring of 24V inverter, and the batteries is connected in series.

Tips: Warm reminder for using car inverter

First of all, the inverter must be used strictly in accordance with the user manual.

Secondly, the car inverter outputs high-voltage AC power, and this power is in a small space and in a movable state, so be careful. Keep it in a safer place (especially away from children) in case of electric shock. It is best to cut off the inverter’s input power when you don’t use it.

Thirdly, do not place the car inverter near the sun or near the heater outlet. The operating temperature of the inverter should not exceed 40 degrees.

Then, the inverter generates heat when working, so do not put objects near or on it.

Last but not least, the inverter is afraid of water, so avoid exposure to rain or being sprinkled by water.
