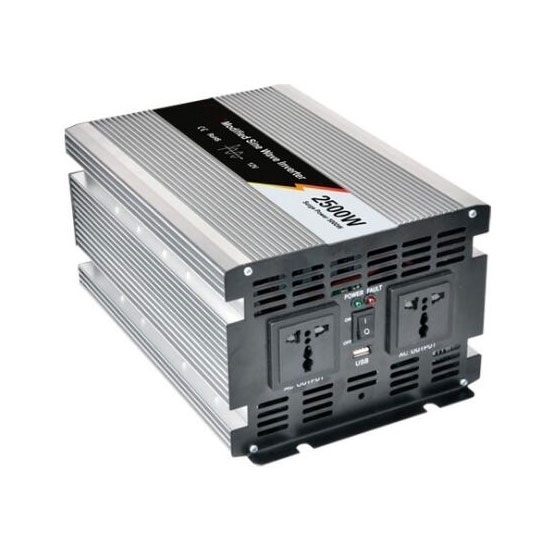

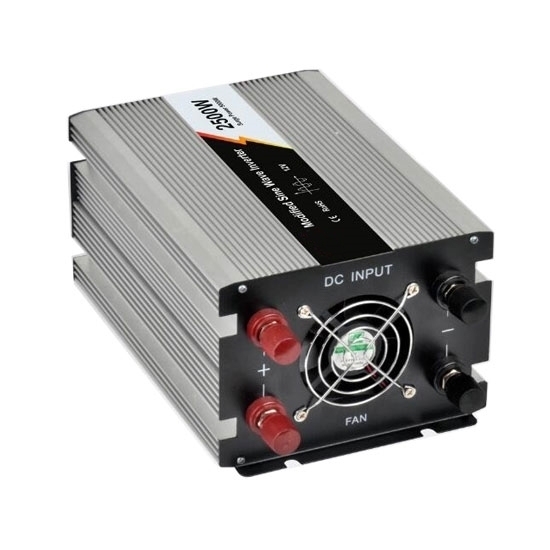

2500 Watt Car Power Inverter, 24V DC To 230V AC

0 reviews • Write a review

from

$317.88

Ex Tax: $317.88

Stock: In Stock
Model: RDDLZ-PI-M2500W
Weight: 1.00
SKU: RDDLZ-PI-M2500W

Available Options

Short Description

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

2500 Watt continuous and 5000 Watt peak power for relaible replenishment
Two AC household power outlets - power a wide range of electronics in your cars, trucks, SUVs, RVs, or anywhere AC power is needed.
USB charging port – charge devices such as mobile phones, laptops, tablets and other USB-powered units
Multi security protections - protecting your devices against overvoltage, undervoltage, overload, over temperature, short circuit (reverse polarity connect)
Durable construction, easy installation and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities
Built-in temperature-controlled cooling fan with low noise

Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.

2500W Car Power Inverter Specification

Model	RDDLZ-M2500W
Rated power	2500W
Peak power	5000W
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input voltage	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.8A	0.5A	0.2A	0.8A	0.5A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 1A
Max. efficiency	85%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±1V	10±0.5V	20±0.5V	40±1V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	12.3±0.5V	24±0.5V	48±1V	12.3±0.5V	24±0.5V	48±1V
Over voltage recover	14.8±0.5V	29.5±0.5V	59±1V	14.8±0.5V	29.5±0.5V	59±1V
Protection function	Low voltage - Alarm at first; voltage continuously reducing, LED Red light on & shut down.
	Over voltage - LED Red light on, shut down
	Over load - LED Red light on, shut down
	Over temperature - Alarm at first; temperature continuously rising, LED Red light on & shut down.
	Short circuit - LED Red light on
	Input reverse polarity - Fuse burn-out
Working temperature	-10℃ ~ +50℃
Storage temperature	-30℃ ~ +70℃
Dimension	300x180x130mm
Net./gross weight	4400g/5200g
Warranty	1 year
Cooling method	Intelligent cooling fan

Details

12/24/48V DC to AC Power Inverter Wiring Diagram

Note: The connection of 48V power inverter with batteries is similar to the wiring of 24V inverter, and the batteries is connected in series.

Tips: How to choose an inverter?

1. Material of the inverter housing.
The material of the inverter casing has an important influence on the service life of the product, as well as the performances, especially the heat dissipation effect. When selecting a power inverter, the last choice is the metal shell such as aluminum.

2. Power
This is a very important aspect. Whether the inverter’s power can meet the needs of use, is the decisive factor for its function. When choosing a power inverter, carefully check the parameters of the inverter.

3. Efficiency
This is a very important indicator of the inverter. The higher the inverter efficiency, the longer the battery life and the smaller the inverter heat. A good power inverter should be able to work for a long time without being burnt when it is powering a load with 80% of nominal power.

4. Protection functions
It is also necessary to protect the inverter from input over voltage, output over load, and output short circuit.

5. Load characteristics
It should select the inverter according to the load power characteristics. Inductive load requires a pure sine wave inverter for use. For the resistive load, the general modified wave inverter can be used.
