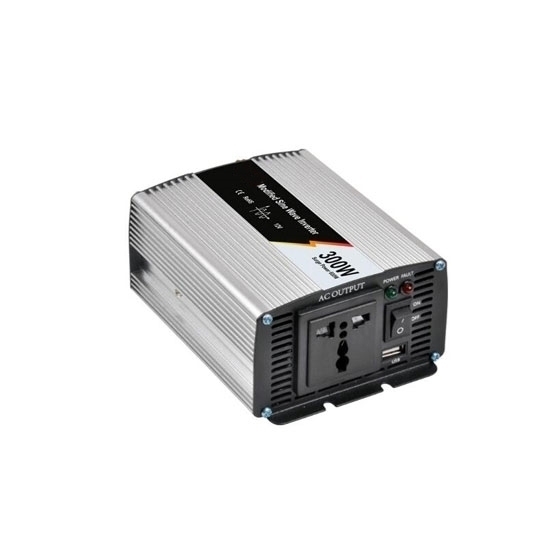

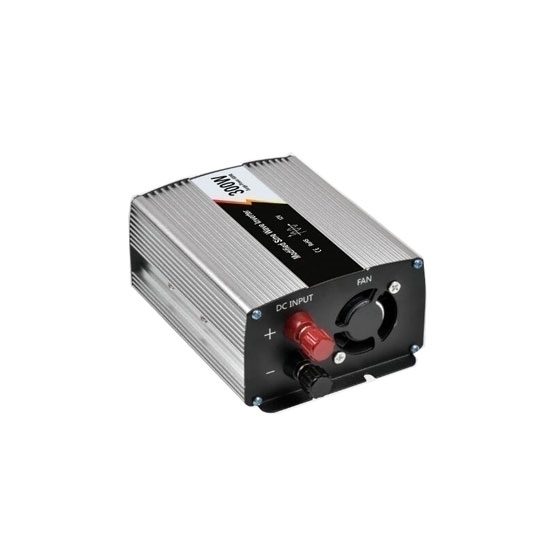

300 Watt Car Power Inverter, 12V DC To 220V AC

0 reviews • Write a review

from

$74.08

Ex Tax: $74.08

Stock: In Stock
Model: RDDLZ-PI-M300W
Weight: 1.00
SKU: RDDLZ-PI-M300W

Available Options

Short Description

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

300 Watt continuous and 600 Watt peak power
110V or 220V AC household power outlet - power AC electronic devices in your vehicle
USB port – charge your smartphones, laptops, tablets and other USB-powered devices
Multiple safety protection - overvoltage, undervoltage, overload, over temperature, short circuit protection (reverse polarity connect)
Compact design, easy to use and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities where AC power is needed

Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.

300W Car Power Inverter Specification

Model	RDDLZ-M300W
Rated power	300W
Peak power	600W
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input voltage	DC12V	DC24V	DC12V	DC24V
Output voltage	100VAC or 110VAC or 120VAC±5%		220VAC or 230VAC or 240VAC±5%
Unload current less than	0.3A	0.1A	0.3A	0.1A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 1A
Max. efficiency	85%
Input voltage range	10-15.5V	20-31V	10-15.5V	20-31V
Low voltage alarm	10.5±0.5V	21±0.5V	10.5±0.5V	21±0.5V
Low voltage protection	10±0.5V	20±0.5V	10±0.5V	20±0.5V
Over voltage protection	15.5±0.5V	31±0.5V	15.5±0.5V	31±0.5V
Low voltage recover	12.3±0.5V	24±0.5V	12.3±0.5V	24±0.5V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	14.8V±0.5V	29.5V±0.5V
Protection function	Low voltage	Alarm at first; voltage continuously reduces, LED Red light on & shut down.
	Over voltage	LED Red light on, shut down
	Over load	LED Red light on, shut down
	Over temperature	Alarm at first; temperature continuously rises, LED Red light on & shut down
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature	-10℃ ~ +50℃
Storage temperature	-30℃ ~ +70℃
Dimension	162x106x63mm
Net./gross weight	515g/730g
Warranty	1 year
Cooling method	Intelligent cooling fan

Details

12/24V DC to AC Power Inverter Wiring Diagram

Optimal Tips for Using Car Power Inverter

Please use our standard battery cable as much as possible, otherwise the car power inverter will not be able to output enough power.
Please turn on the inverter before starting the load. Meanwhile, please disconnect the load before turning off the inverter.
It is forbidden to connect the mains to the output port of car inverter. It is also not allowed to reversely connect the battery to the inverter on load.
Do not power the household appliances under the overload. For example, when using the car inverter for powering motors, pumps, air conditioners and other inductive loads, please ensure that the value of at least 3 times rated power of the load must not exceed the rated power of power inverter.
When the red indicator of the inverter lights with buzzing, please check if it is overloaded and the battery is fully charged (Whether your battery is new or not, please charge the battery for at least 3 hours before trying again).
Please turn off the power inverter when not using it.
When the car inverter beeps, please make sure to first disconnect the load, turn off the inverter, and then check what the problem is.
