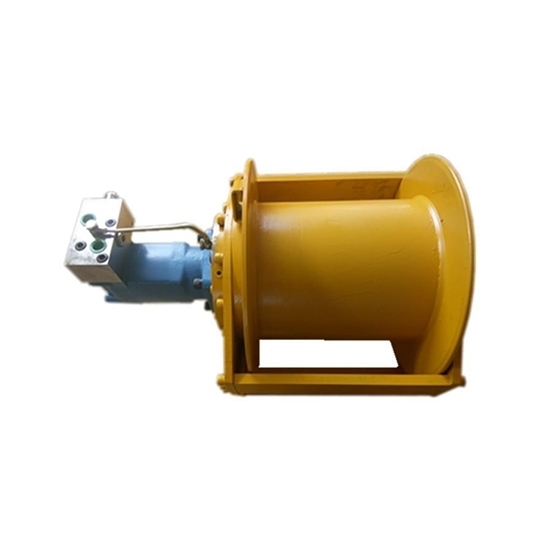

5000 Lbs Hydraulic Winch

0 reviews • Write a review

from

$3,135.89

Ex Tax: $3,135.89

Stock: In Stock
Model: RDDLZ-HWINCH-5000
Weight: 1.00
SKU: RDDLZ-HWINCH-5000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic winch is a device that uses hydraulic power to reel in or let out a cable or rope. It is commonly used in heavy-duty applications such as towing, construction, and off-road vehicles. The hydraulic system provides the necessary force and control for efficient pulling and lifting operations.

Specification

Model		RDDLZ-HW30-25
The 1st Layer	Pull	5000 lbs (2.5 ton)
	Rope Speed	0~35 m/min
Working Pressure Differential		15 Mpa
Oil Flow Supply		75 L/min
Applicable Rope Diameter		12mm
Hydraulic Motor		BMR-305
Planetary Reduction Ratio		1:5

Layer		Wire Rope Capacity
1		18m
2		38m
3		59m
4		80m
5		110m

Note*:

Never exceed working load limit.
This hydraulic winch does not include wire rope.
If you want to purchase wire rope, please contact us.

Dimensions (Unit: mm)

Tips: How to use a hydraulic winch?

A hydraulic winch is a powerful device commonly used for lifting, pulling, or towing heavy loads. To operate a hydraulic winch, follow these steps:

Familiarize yourself with the winch components: Identify the hydraulic motor, spool, control valves, hydraulic hoses, and any additional features such as a clutch or brake.
Connect the winch to a hydraulic power source: Attach the winch's hydraulic hoses to the power source, which could be a hydraulic pump or the hydraulic system of a vehicle.
Ensure proper fluid level and pressure: Check the hydraulic fluid level and ensure it meets the manufacturer's specifications. Start the hydraulic power source and adjust the pressure to the recommended level for the winch.
Attach the load: Securely fasten the load to the winch using appropriate attachments like cables, chains, or straps. Make sure the load is within the winch's rated capacity.
Engage the controls: Operate the winch using the control valves. Depending on the winch model, you may have separate controls for direction, speed, and braking. Follow the manufacturer's instructions for proper operation.
Monitor the operation: Keep a close eye on the winch while it is in use. Ensure that the load is moving smoothly and that the winch does not exceed its capacity or strain excessively.
Disengage the winch: Once the load has been moved or the task is completed, release the controls, and disengage the winch. Safely detach the load from the winch, ensuring no tension remains on the winch's components.

Always consult the manufacturer's manual for specific instructions regarding the operation, maintenance, and safety guidelines for your hydraulic winch.
