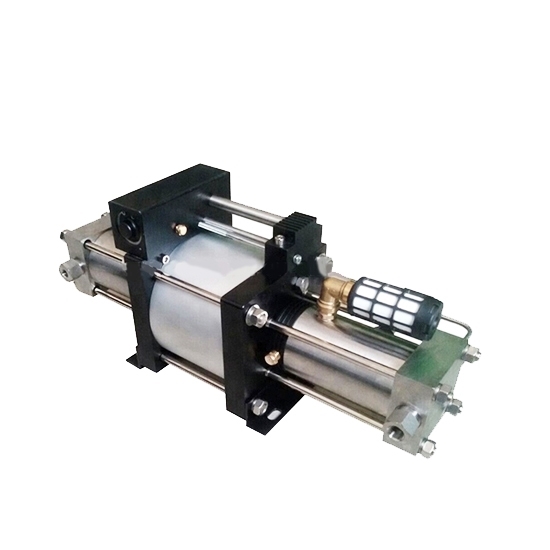

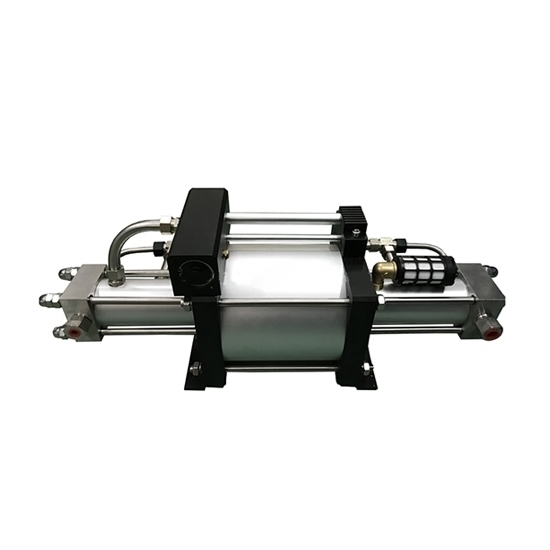

60:1 Air Pressure Booster, 25-480 Bar (362-6961 Psi)
from
$4,978.30
Ex Tax: $4,978.30
- Stock: In Stock
- Model: RDDLZ-APB-60:1
- Weight: 1.00
- SKU: RDDLZ-APB-60:1
60: 1 air Pressure Booster, with 215 L/min maximum flow at driven air pressure of 40 bar, The air booster pump has 25-480 bar (362- 6961 psi) gas inlet pressure, the maximum gas outlet is 480 bar.
Features:
- RDDLZ air boosters are double acting, with single air driven heads type.
- RDDLZ air boosters are available with high quality seals, which provide significantly better service life.
- They are double pump heads with exhaust cooling devices.
- All components in contact with the gas are made of stainless steel.
- Pipes mounting way are available as customized.
Specification:
| ModeB+A1:B12 | RDDLZ-DGD-60 |
| Pressure boost ratio | 60:1 |
| Min. gas Inlet pressure PA | 25 bar |
| Max.gas Inlet pressure PA | 480 bar |
| Max. gas outlet pressure PB | 480 bar |
| Drive piston diameter | 160mm |
| Driven air pressure PL | 2 bar- 8 bar |
| Max. driving air pressure | 10 bar |
| Formula to calculate gas outlet pressure PB | 40XPL+ PA |
| Connection: Gas Inlet / Gas outlet (PT thread) | PT 1/4" (Default PT thread, please contact us if NPT thread is required) |
| Driven Airinlet Port | G 1/2" (Default G thread, please contact us if NPT thread is required) |
| Max. flow at driven air pressure of 6 bar | 215 L/min (at PA of 40 bar) |
| Weight | 25kg |

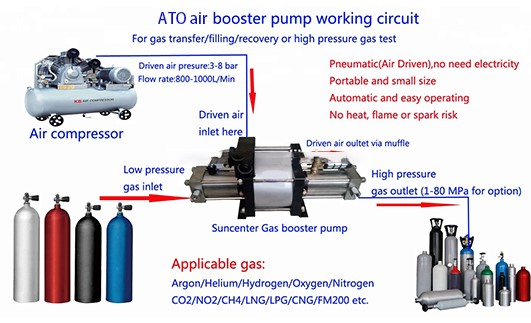

Applications:
- 60: 1 air pressure booster is widly used pressure test with gas/ air gas transfer and filling (Air/ Argon/ Helium/ Hydrogen/ Oxygen/ Nitrogen/ CO22/ CH4/ LNG/ LPG/ CNG/ FM200 etc. )
- Charging of gas cylinder and accumulator with nitrogen.
- Nitrogen gas spring charging Supply for isolating gas systems gas assisted injection molding transfer of oxygen cylinders charging of breathing air bottles leak test.
- Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, bops, gas bottles and air craft components safety valve adjusting.

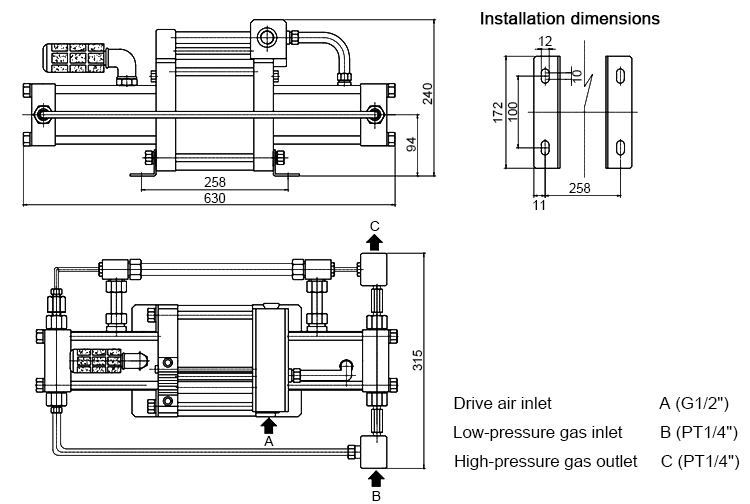

Dimensions (Unit: mm)
Details
Tips: Why do you Choose RDDLZ Air Pressure Booster?

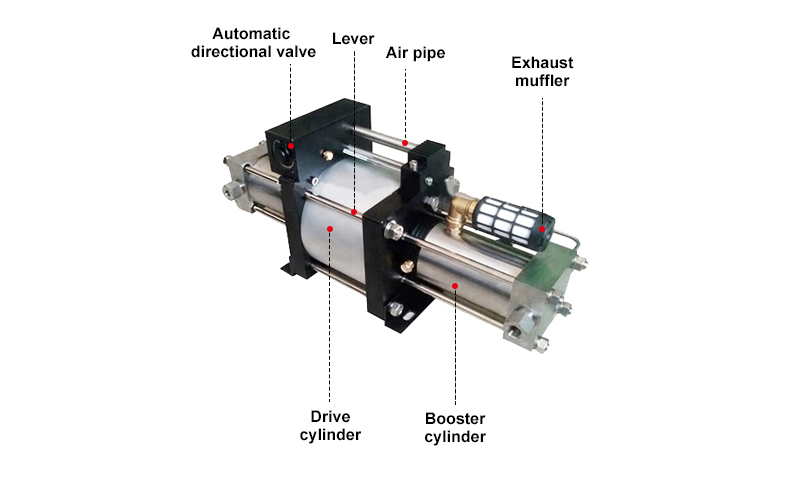

- RDDLZ 60: 1 air pressure booster adopts piston pump structure, pneumatic power, high pressure, oil free, range of applications in gas transmission and filling, increase air pressure, transmission and filling cylinders.
- Under certain air inlet pressure, RDDLZ booster pump is driven by common compressed air, which is safe and convenient, without arc spark, safe and explosion-proof; It has good sealing performance and no oil lubrication.
- The guiding connecting sleeve device is used to separate the gas compression cylinder from the air drive cylinder, so as to ensure that the compressed medium is not polluted and the output capacity of stable pressure.
- The product structure is stable, the material performance is remarkable, durable and safe.
