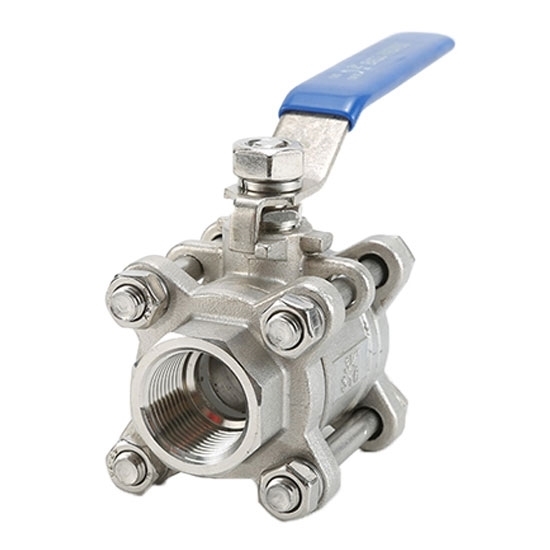

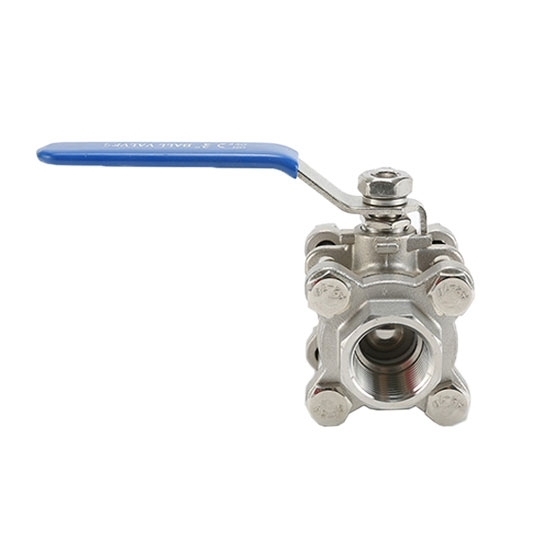

3 Piece Stainless Steel Ball Valve, 1/2 Inch

0 reviews • Write a review

from

$77.89

Ex Tax: $77.89

Stock: In Stock
Model: RDDLZ-BV-Q11F-12
Weight: 1.00
SKU: RDDLZ-BV-Q11F-12

Available Options

Short Description

Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 Piece stainless steel ball valve, 1/2 inch size, simple structure, small size and light weight, has a wide range of applications in the chemical, paper, pharmaceutical, water conservancy, power and other industries.

Specification

Model	RDDLZ-BV-Q11F-12
Connection Method	Internal Thread
Material	304 Stainless steel/316 stainless steel
Operating Temperature	-20℃~+150℃
Pressure Rating	1000 PSI W.O.G
Pressure Test	API598
DN	20
Size	1/2 Inch
Weight	1 kg
Warranty	12 Months
Certificate	ISO 9001: 2008

1/2 Inch Ball Valve Dimension (unit: mm)

Size	A	A1	B	C	ΦD	ΦE	F	ΦG	ΦH	ΦI	J	K	L
1/2 Inch	2.83	2.83	2.36	4	0.59	0.86	0.44	0.7	0.84	0.62	2.13	3.62	2.42

3 Piece Ball Valve Applications

Tips: What is a three-piece ball valve?

Three-piece ball valve and gate valve are the same type of valve. The difference is that its closing part is a sphere. The sphere rotates around the center line of the valve body to achieve opening and closing. The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. The three-piece ball valve is a new type of valve that is widely used.
