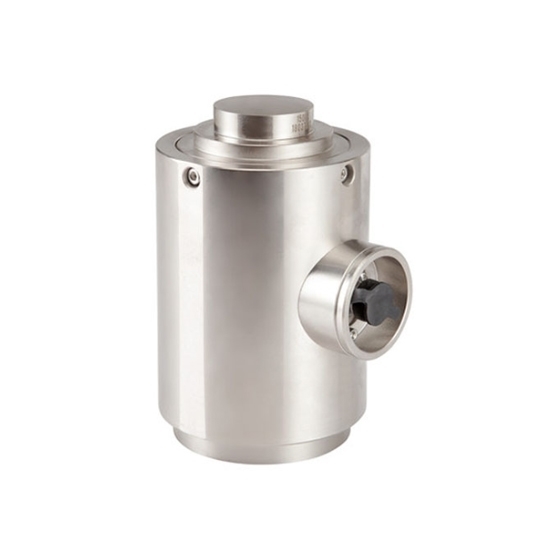

Compression Load Cell, Column Type, 15 Ton/30 Ton/50 Ton To 200 Ton

0 reviews • Write a review

from

$263.17

Ex Tax: $263.17

Stock: In Stock
Model: RDDLZ-LC-C01
Weight: 1.00
SKU: RDDLZ-LC-C01

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Compression load cells have capacity range from 15 ton, 20 ton, 30 ton, 50 ton, 100 ton to 200 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCCT-TJH-3
Shipping Weight	7.4~33.8kg
Capacity Range *	20 ton~200 ton

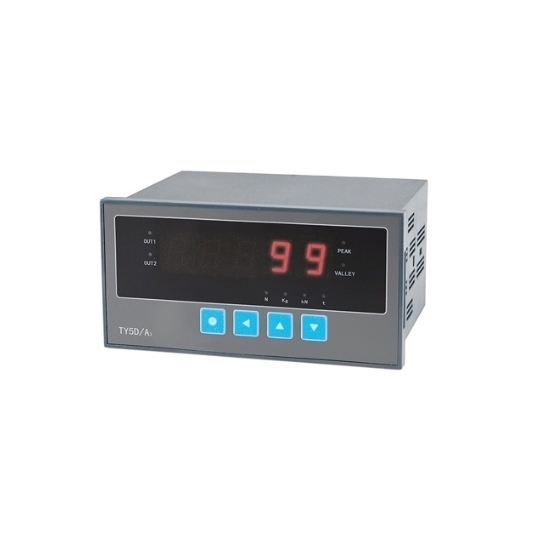

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)

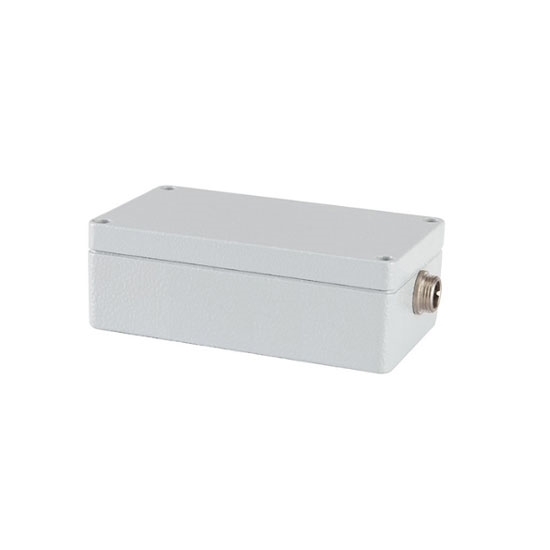

Matched Transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.05~0.1%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.03%F.S/10℃
Temperature Effect on Output	±0.03%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection Class	IP67
Cable Length	6m for capacity ≥ 5 ton, with aviation plug 3m for capacity < 5 ton, with aviation plug
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

42CrMo Alloy Material: Column structure, strong resistance to machine fatigue, large load capacity, widely used in industries such as pharmaceuticals, metallurgy, automotive, railway, warehouse, and material handling equipment.
High Measurement Accuracy: Stable output, reliable signal transmission, strong anti-jamming capability, ensuring high accuracy.
Fine Workmanship: Advanced grinding technology, flat design, easy installation, smooth and precise construction for efficient setup.

Dimension

Capacity	Dimension (mm)
Capacity	ΦA	ΦB	ΦC	ΦD	H	E	M	SR (radian)
15~30 ton	86	73.5	56	40	140	129	10	200
40~60ton	100	87	68	80	150	133	12	350
100 ton	107	91	68	80	150	156	16	500
150~200 ton	158	139	100	120	220	201	16	1000

Wiring Method

Tips: Load cell working principle

Load cell is actually a kind of device to transform the weight signal into the measurable electrical output signal. At present, the commenly used load cell is the resistance strain load cell, which utilizes the principle that the resistance modifies accordingly when the strain gauge deforms. Load cell is mainly constituted by four parts, which are respectively the elastic component, strain gauge, measuring circuit and transmission cable.
