2 Inch Stainless Steel Sanitary Butterfly Valve

0 reviews • Write a review

from

$99.29

Ex Tax: $99.29

Stock: In Stock
Model: RDDLZ-BV-2I
Weight: 1.00
SKU: RDDLZ-BV-2I

Available Options

Short Description

Connection Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

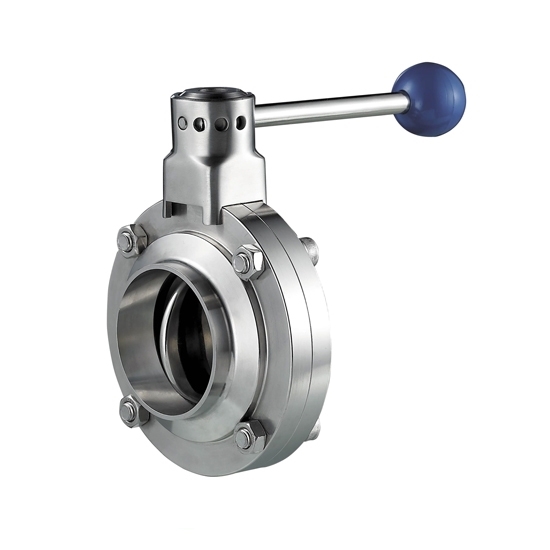

In the food grade industry, the 2 inch sanitary butterfly valve is a common hygienic valve that has better flow control characteristics. This high performance butterfly valve with welded or quick connect end is constructed from 304 stainless steel and EPDM or PTFE seat, which can be operated by actuator or handle.

Specification

Model	RDDLZ-BV-2I
Type	SS Sanitary Butterfly Valve
Size	2 inch

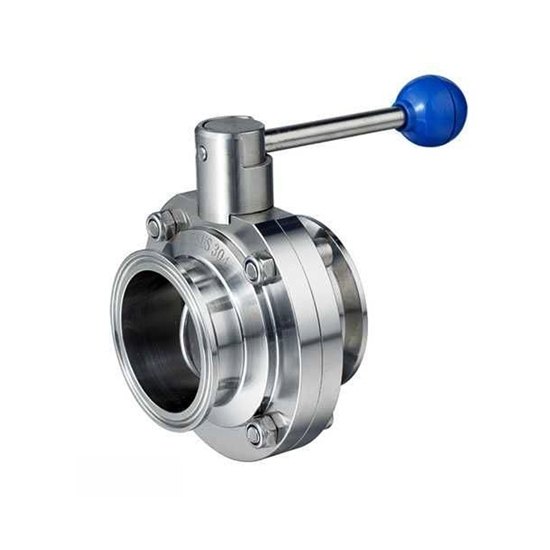

Connection Method (Optional)	Welded End/ Quick Connect End
Drive Method	Manual
Body Material	304 Stainless Steel (Default) / 316 Stainless Steel
Washer and Gasket	EPDM Comforms to PFA 177.2600
Handle	AISI 304/ PP
Surface Finishing	Ra≤0.8
Operating Torque	3Nm
Operating Temperature	-10℃~+120℃
Max. Pressure	1MPa
Min. Pressure	0.02MPa p.abs
Weight	2 kg
Certificate	PED97-23EC, FDA.177.2600

Dimensions (Unit: mm)

Size	Dn	D	D1	J	H	H1	A1	A2
2 inch	47.8	50.8	64	133	52.5	47.5	52	76

Tips for installing sanitary butterfly valve

It is best to install SS sanitary butterfly valves upright and vertically on the pipeline. A support frame should be added to the valve where the weight is large and there is vibration.
The body of the stainless steel sanitary butterfly valve should avoid excessive stress due to severely different shafts between the front and rear piping or the adjusted flange.
Flush the piping system before installing the regulating valve before the initial start of construction and after the maintenance is stopped. Or install a transition filter in front of the valve.
The sanitary BF valve must be installed in accordance with the arrow on the flow direction of the valve body in an environment where there is no severe corrosive gas.
