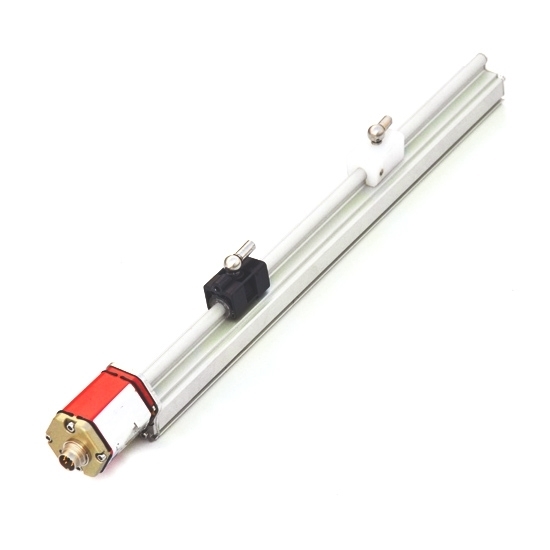

2000mm Magnetostrictive Displacement Sensor For Impact Ram

0 reviews • Write a review

from

$1,316.15

Ex Tax: $1,316.15

Stock: In Stock
Model: RDDLZ-MSR-B2000
Weight: 1.00
SKU: RDDLZ-MSR-B2000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetostrictive linear displacement sensor with measuring range 2000mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive measurement sensors have effective travel 50mm~35000mm, can be widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Basics	Model	RDDLZ-MSR-B2000
	Measuring range	0~2000 mm
	Shipping weight	10.5 kg
	Length	2173.1 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Temperature excursion	≤0.001%FS
	Operating voltage	24V DC
	Current drain	5～16mA
	Vibration coefficient	5g/10-2000Hz/IEC standards IEC standards 68-2-6
	Operating temperature	-40℃~85℃
	Load characteristic	Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
	Output	0~5V; 0~10V; 0~20mA; 4~20mA
	Installation method	Fixed clip, with specific screw M5X20
	Magnet type	Slider magnet, levitating magnet
	Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: Magnetostrictive linear displacement sensor apply in rolling machine
Rolling machine drives upper roller through vertical lifting movement of oil cylinder. With the aid of upper roller pressing down and rotating movement of lower roller, make metal sheet has multi-pass continuous bending, and generates permanent molding deformation, and roll to required cylinder and taper cylinder. But pressing down position is big or small should be fed up to PLC through a linear displacement sensor, then to achieve oil cylinder control. This linear displacement sensor is the key for processing accuracy of plate material. Measurement type and appearance of magnetostrictive sensor decide it's more suitable for rolling machine performance improving.
