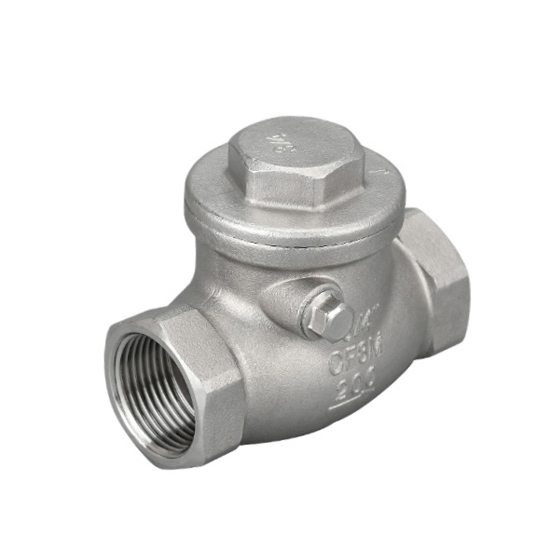

3" Stainless Steel Swing Check Valve, Horizontal

0 reviews • Write a review

from

$196.53

Ex Tax: $196.53

Stock: In Stock
Model: RDDLZ-SSSCV-03
Weight: 1.00
SKU: RDDLZ-SSSCV-03

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This check valve cannot be used for drinking water.

High quality 3 inch (DN80) swing check valve for sale online. It is a non-return valve with 304/316 stainless steel, 200 WOG working pressure and optional BSP/BSPT/NPT thread, designed for preventing pipeline backflow.

Specifications

Model: RDDLZ-H14W
Check Valve Type: Swing
Shape: Horizontal
Nominal Diameter: 3 inch (80mm)
Working Pressure: 200 WOG
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~300°C
Weight: 4.2kg
Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	DISC	CF8/CF8M	1
3	HANGGER PIN	SS304/SS316	1
4	JOINT GASKET	PTRE/RPTFE	1
5	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
80	76.5	190	103

Applications

A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

Tips: Swing Check Valve Clogging & Backflow Troubleshooting

Clogging: Swing check valves can become clogged with debris, which can impede flow and reduce the valve's efficiency. To troubleshoot this issue, inspect the valve and surrounding piping for any blockages or buildup of debris. If necessary, disassemble the valve and clean any debris from the internal components.

Backflow: In some cases, swing check valves may fail to prevent backflow, which can occur due to improper installation or damage to the valve. To troubleshoot this issue, check the valve's orientation and ensure that it is installed in the correct direction of flow. Inspect the valve for any visible signs of damage, such as cracks or corrosion, and replace any damaged parts.
