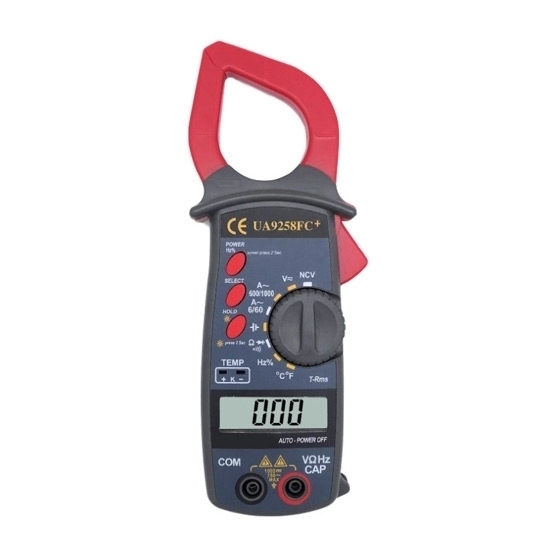

Digital Clamp Meter AC 600A With Temperature/TRMS/NCV Function
from
$89.98
Ex Tax: $89.98
- Stock: In Stock
- Model: RDDLZ-CLAM-9258FC
- Weight: 1.00
- SKU: RDDLZ-CLAM-9258FC
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Digital clamp meter has AC current range 0-600A, TRMS/NCV/temperature/capacitance functions, maximum jaw opening size 36mm, 4 digit display and maximum value 5999.
Specification:
Basics | Model | RDDLZ-UA9258FC+ | |
Weight | 380g | ||
Size (L*W*H) | 210*67*36mm | ||
Display | 4 digit LCD display | ||
Maximum display value | 5999 | ||
Power supply | DC 9V, 6F22 battery | ||
Maximum jaw opening size | 36mm | ||
Woring environment | Temperature: 18℃~28℃ (64.4℉~82.4℉), relative humidity:<75% | ||
Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
Accessories | A pair of test probes, a pair of temperature probes, a user manual, 6F22 battery | ||
Functions | Item | Range | Accuracy |
AC current | 600A | ±(2.5%+10 digits) | |
DC voltage | 600V | ±(0.5%+5 digits) | |
AC voltage | 600V | ±(0.8%+5 digits) | |
Resistance | 60MΩ | ±(1.2%+3 digits) | |
Frequency | 10MHz | ±(0.3%+10 digits) | |
Capacitance | 100mF | ±(5.0%+5 digits) | |
Temperature | -50℃~+1000℃ (-58℉~1832℉) | ±(1.9%+6 digits) | |
Duty ratio | 10%~90% | ±(0.5%+3 digits) | |
Special functions | TRMS | True RMS measurement for sine wave signal | |
NCV | Non-contact voltage test, with buzzer and indicator | ||
Diode test | Display forward voltage value of diode | ||
On-off buzzer | Continuity test buzzer | ||
Data hold | Hold the reading when taking a measurement | ||
Automatic power off | Automatic power off when 15 minutes no operation | ||
Overload protection | Overload protection for 100% range | ||
Range selection | Automatic range selection and manual range selection | ||
Back light | Back light for LCD display |
