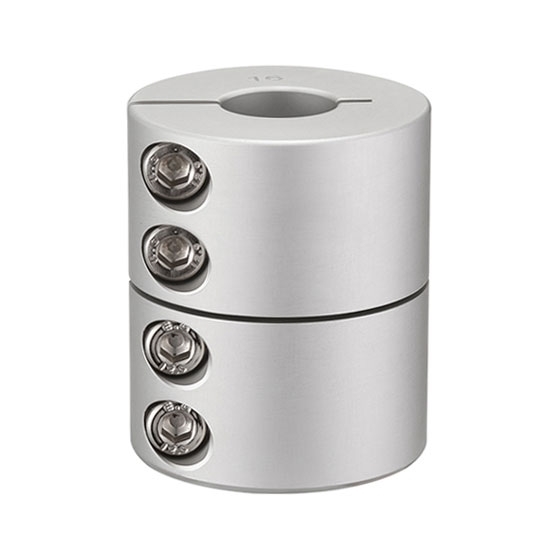

Rigid Coupling, 20 X 30mm

0 reviews • Write a review

from

$109.86

Ex Tax: $109.86

Stock: In Stock
Model: RDDLZ-SC-GNC-2030
Weight: 1.00
SKU: RDDLZ-SC-GNC-2030

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Rigid shaft coupling 5 mm to 10mm bore, 20mm diameter and 30mm length, high axial load and torque capacity, maintenance-free, with super oil and corrosion resistance characteristics.

Specification

Model	RDDLZ-SC-GNC-2030
Rated Torque	10 Nm
Allowable Speed	7500rpm
Moment of inertia	8.6 X 10^-6
d1/d2 Inner Diameter Size	4-5-6-6.35-7-8-9-9.525-10
Φd	20
L	30
F	3.75
Moment of inertia	M2.5
Tightening Torque	1 N.m
Weight	25g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

20 x 30mm Rigid Coupling Dimension (unit: mm)

Tips: Coupling requirements for keyed shafts

1. Use flat key type
2. The buyer can specify the number and layout of the keyway
3. For high-speed couplings, the type, size, tolerance, material and heat treatment of the flat key elastic sleeve pin coupling.
4. The cross-sectional size requirements for the keyway of the flat key of the high-speed coupling.
5. For the coupling hub of the key connection, there should be a puller screw hole at the end with a minimum of M8.
