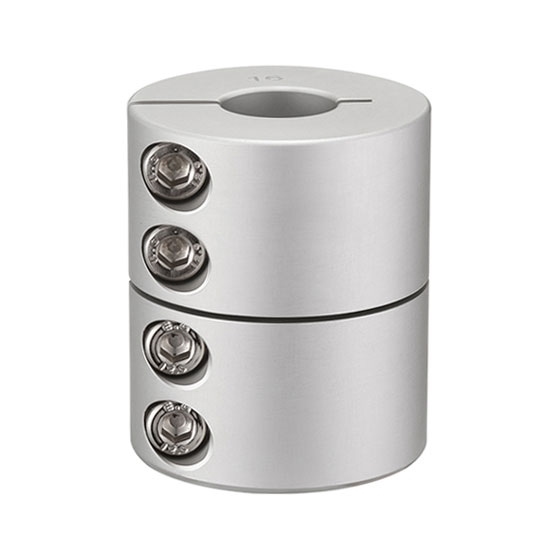

Rigid Coupling, 20 X 20mm

0 reviews • Write a review

from

$99.85

Ex Tax: $99.85

Stock: In Stock
Model: RDDLZ-SC-GNC-2020
Weight: 1.00
SKU: RDDLZ-SC-GNC-2020

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost rigid coupling or sale, diameter 20mm, length 20mm, bore 4mm to 10mm, integrated structure, high-strength aluminum alloy material is used for clamp coupling, rugged and durable, strong corrosion resistance.

Specification

Model	RDDLZ-SC-GNC-1624
Rated Torque	10 Nm
Allowable Speed	7500rpm
Moment of inertia	8.6 X 10^-6
d1/d2 Inner Diameter Size	4-5-6-6.35-7-8-9-9.525-10
Φd	20
L	20
F	3.75
Moment of inertia	M2.5
Tightening Torque	1 N.m
Weight	15g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

20 x 20mm Rigid Coupling Dimension (unit: mm)

Tips: How to maintain the shaft coupling?

1. Partially disassemble and inspect the shaft coupling, clean the specified parts, and dredge the pipes and valves.
2. Replace or clean the packing, observe whether the sealing part is leaking, adjust the matching gap of each part of the equipment, and tighten each part of the equipment.
3. Refuel and prevent rust on the bolts of the motor and the water pump.
4. Check whether the pressure gauges and control cabinets are normal, and repair or replace them if they are damaged.
5. Check the operation of the control cabinet and whether the internal components are normal.
