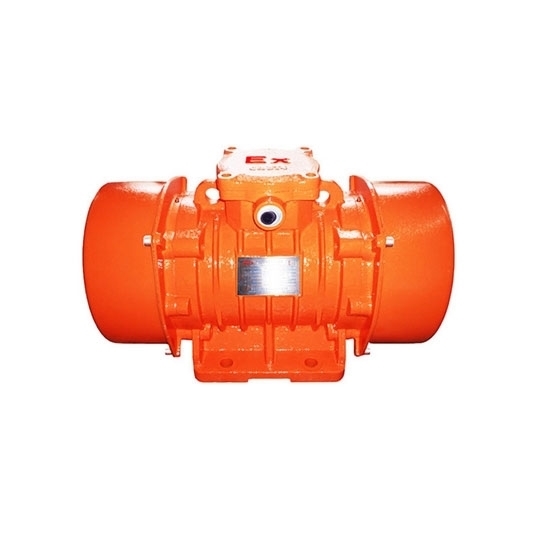

Electric vibrating motor 120 watt power, 380 volt, 3 phase, explosion-proof design, can be used in explosive atmospheres, the vibration motor has stable performance and long service life.

Specification

120 Watt Explosion Proof Vibration Motor Dimension (unit: mm)

4 Pole Explosion Proof Vibration Motor Applications

Details

Tips: What causes the explosion proof vibration motor to overload?

1. When the balance weights on both sides are inconsistent, or the balance weight is not tightened to cause rotation, the load keeps changing, and the load is large or small during operation, which will overload the explosion-proof vibration motor and cause the vibration motor winding to overheat.

2. When the explosion-proof vibration motor is not matched and the load power of the vibration motor is greater than the rated power, long-term overload operation will cause the vibration motor to overheat.

3. Check the external power supply voltage, if the voltage is too low, it may cause this phenomenon.

The explosion-proof vibration motor is very sensitive to the fluctuation of the power supply voltage. During the running time, if the voltage drop is too much, its overload capacity and starting torque will be reduced, and even the phenomenon of not moving the load or starting at all will occur. In order to ensure the vibration motor For normal operation and effective protection, the coordination between the vibration motor and the protection device must be considered. Especially when small-capacity vibration motors are used in large-capacity power grids, the coordination of protection is more prominent.
