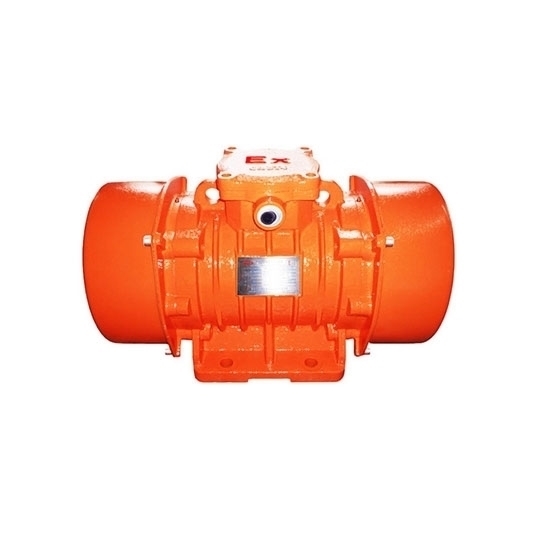

5.5 KW Explosion Proof Vibration Motor, 4 Pole

Free Shipping

5.5 KW Explosion Proof Vibration Motor, 4 Pole

0 reviews • Write a review

from

$8,996.98

Ex Tax: $8,996.98

Stock: In Stock
Model: RDDLZ-EPNM-VBB-844
Weight: 1.00
SKU: RDDLZ-EPNM-VBB-844

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial shaker motor power 5.5 kW, 3 phase, 380V, rated current 11.52A, vibration motor has the advantages of beautiful appearance, waterproof and explosion-proof, safe and reliable.

Specification

Model	RDDLZ-EPNM-VBB-844
Power	5.5 kW
Rated Current	11.52A
Voltage	380V
Phase	3 Phase
Pole	4 Pole
Speed	1450 rpm
Frequency	50/60 Hz
Force	84 kN
Insulation Class	F
Protection Level	IP55
Weight	305kg
Certificate	CE

2 Pole Explosion Proof Vibration Motor Dimension (unit: mm)

A	B	AB	BB	D	L	J	G	H	HD	d	Bolt
380	135	460	430	353	700	105	35	210	425	38	M36

5.5 kW Explosion Proof Vibration Motor Applications

Details

Tips: How to lubricate the vibration motor?

According to the formal requirements, the vibration motor needs to be lubricated once a month, and it is better to add 10-15 grams each time. Under normal circumstances, the new motor should be re-lubricated to the bearing after it is used continuously for about a week. Generally, the grease used is molybdenum disulfide No. 3 lithium base. The interval between the first lubrication and the next lubrication depends on the length of time the equipment is used. Depending on the situation, the general interval is about one month.
