300 W DC Gear Motor, 3000 Rpm, 12V/24V/48V

0 reviews • Write a review

from

$300.48

Ex Tax: $300.48

Stock: In Stock
Model: RDDLZ-BLDC-300
Weight: 1.00
SKU: RDDLZ-BLDC-300

Available Options

Short Description

With Matched Controller

Gear Ratio

Voltage (DC)

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

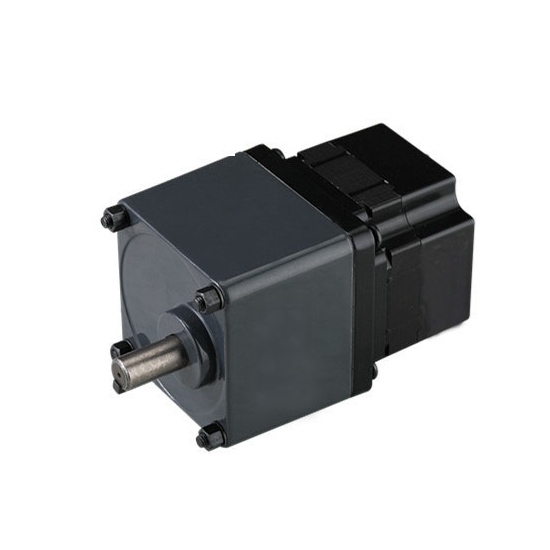

300W DC gear motor is a brushless DC motor with a 90 mm size gearbox fitted to the front of the motor. The DC motor with rated speed of 3000 rpm, and no-load speed is 3300 rpm, rated torque is 0.96 Nm, peak torque up to 2.87 Nm.

300W DC gear motor specifications

Model	RDDLZ-D5BLD300-12	RDDLZ-D5BLD300-24	RDDLZ-D5BLD300-48
Power	300W	300W	300W
Voltage	12V	24V	48V
Rated Speed	3000 rpm	3000 rpm	3000 rpm
No-load Speed	3300 rpm	3300 rpm	3300 rpm
Rated Current	31.25A	15.63A	7.81A
Rated Torque	0.96 N.m	0.96 N.m	0.96 N.m
Peak Torque	2.87 N.m	2.87 N.m	2.87 N.m
No-load Current	< 7.2A	< 6.13A	< 4.61A
Compatible Driver Model	KVD2412N (Click it to the product page)	BLD-750 (Click it to the product page)	BLD-300B (Click it to the product page)
Protection Grade	IP54
Motor Lead Length	300mm
Temperature	0~50℃
Weight	3.4 Kg
Gearbox Model	2GN□K, Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

The allowable torque with a gearbox

Gear Ratio	3	5	7.5	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Speed (r/min)	1000	600	400	300	240	200	167	150	120	100	83.33	75	60	50	40	33	30	25	20	17	15
Allowable Torque (N.m)	2.32	3.87	5.8	7.74	8.71	10.46	12.55	12.61	15.76	18.91	20	20	20	20	20	20	20	20	20	20	20
Allowable Torque (kgf.cm)	23.21	38.68	58.02	77.36	87.14	104.6	125.5	126.1	157.6	189.1	200	200	200	200	200	200	200	200	200	200	200

Note:

The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

Wiring Definition

Dimension (Unit=mm)

*Mounting screws are included with gearbox

Details

Tips: Difference between gear motor and VFD

The VFD changes the routine power supply into AC power supply of various frequencies, so as to realize the variable speed operation of the motor. In this process, the control circuit completes the control of the main circuit, the rectification circuit transforms the AC into DC, the DC intermediate circuit carries out smoothing filtering to the output of the rectification circuit, the inverter circuit transforms the DC into AC. As for the VFD that requires large amount of calculation, such as the vector controlled inverter, a CPU for torque calculation and some corresponding circuits may also be required. Frequency control is realized by changing the frequency of power supply for motor stator winding.

Gear motor is a power transmission mechanism that can be used for both high torque and common speed applications such as conveyer belt, mixer, windlass, clapper and automation special machine etc.. Moreover, with the development of industry and the automation of factories, demand for gear motor keeps on increasing. There are many ways to decelerate, but the most commonly used method is to decelerate with gears as it can reduce the space and costs.
