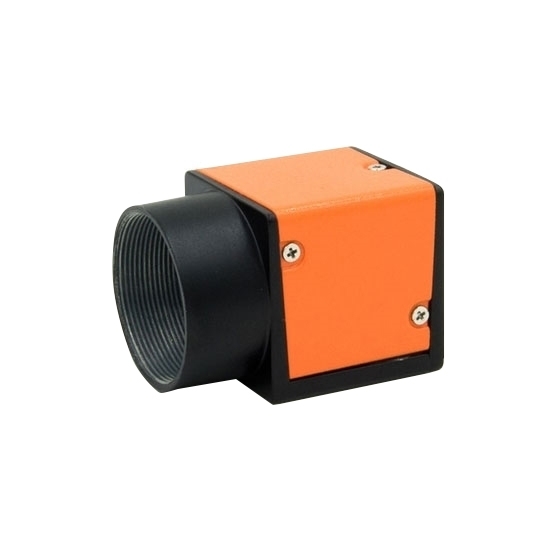

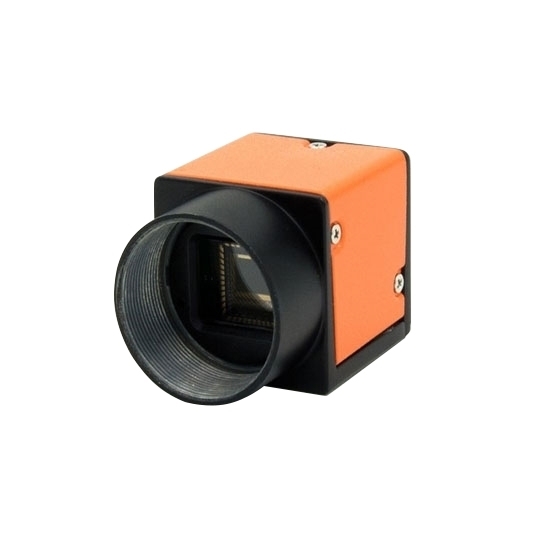

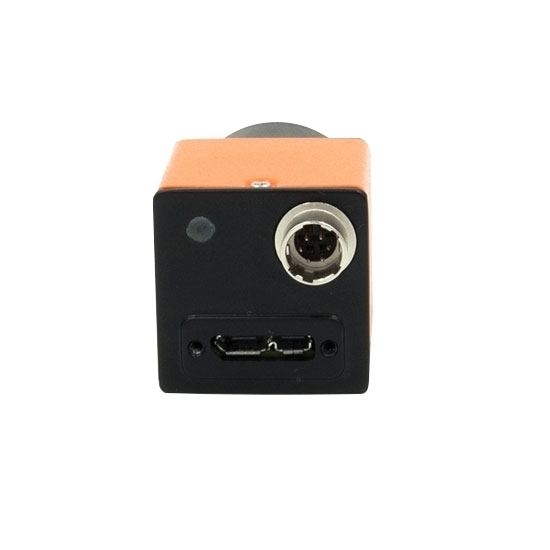

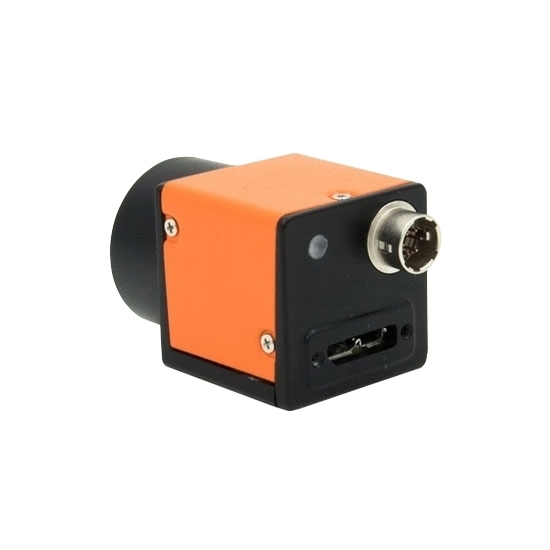

USB 3.0 Industrial Camera, 2.3MP, 2/3" CMOS, Mono/Color

0 reviews • Write a review

from

$1,196.35

Ex Tax: $1,196.35

Stock: In Stock
Model: RDDLZ-CAMERA-2000150
Weight: 1.00
SKU: RDDLZ-CAMERA-2000150

Available Options

Model

Bit Depth

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1920x1200 (1.3 Mega Pixel) industrial camera with USB 3.0 high speed data transmission bus can work in complex environments stably. And the camera is really suitable for 3D scanning, motion capture, trajectory analysis and other fields.

Features

Support GenICam ™ and USB3 Vision® Standard
Compact design, to save installation space
Rugged industrial housing design
Built-in temperature, power supply real-time monitoring sensor
Provide professional SDK for GigE machine vision camera

Specification

Model	2000-150um	2000-150uc
Resolution	1920x1200 (1.3 Mega Pixel)
Sensor Type	CMOS
Sensor Model	PYTHON 2000
Format	2/3"
Pixel Size	4.8μm x 4.8μm
Maximum Frame Rate	150fps
Bit Depth	8-bit or 10-bit
Mono/Color	Monochrome	Color
Exposure Time	16μs~1s
SNR	>38dB
Dynamic Range	60dB
Shutter Type	Global Shutter
Interface	USB 3.0
Lens Mount	Standard C-Mount
Power Supply	USB
Power Comsumption	3.5W
Hardware Control	I/O input (external trigger), I/O output, Opto-couplers Isolation
Programmable Control	Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw, LUT, Black Level Correction
Opearting System	Support Windows XP/7/8/10 Support 32-bit and 64-bit operating system/Arm/Linux (Software can be provided for free)
Operating Tempearture	-30~+60℃
Storage Temperature	-30℃~+80℃
Mass	60g
Dimension	29x29x29mm

USB 3.0 Industrial Camera Dimensions

Tips: How to maintain an industrial camera?
1. Avoid pointing the camera to the sunlight directly, in case of damaging the image sensor of the industrial camera.
2. Protect the industrial camera from contacting oil, steam, water vapor, moisture and dust, and avoid contacting the water directly.
3. Do not clean the camera with stimulating cleaners or organic solvents.
4. Do not pull or twist the connection line.
5. Do not disassemble the camera at will if not necessary. Don’t try to touch its internal parts, otherwise the camera may be damaged.
6. Keep the camera in a clean and dry place for storage.
