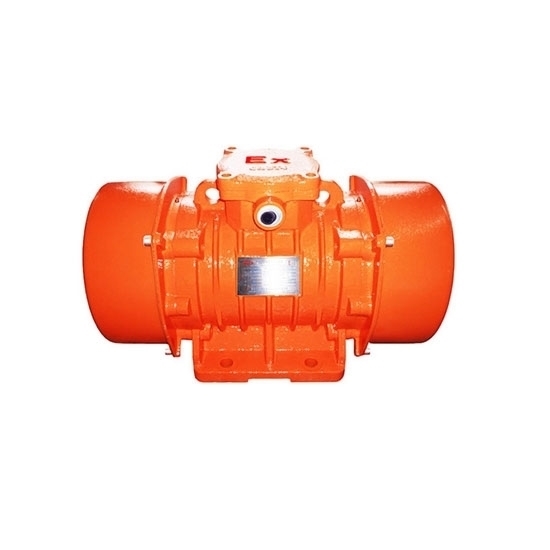

3 KW Explosion Proof Vibration Motor, 2 Pole

Free Shipping

3 KW Explosion Proof Vibration Motor, 2 Pole

0 reviews • Write a review

from

$6,765.48

Ex Tax: $6,765.48

Stock: In Stock
Model: RDDLZ-EPNM-VBB-402
Weight: 1.00
SKU: RDDLZ-EPNM-VBB-402

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

380 Volt powerful explosion proof vibration motor, 3 phase, is the preferred source of vibration for various types of machinery such as vibrating screens, vibrating blanking machines, circular vibrating screens, and vibrating conveyors.

Specification

Model	RDDLZ-EPNM-VBB-402
Power	3 kW
Rated Current	6.2A
Voltage	380V
Phase	3 Phase
Pole	2 Pole
Speed	2870 rpm
Frequency	50/60 Hz
Force	40 kN
Insulation Class	F
Protection Level	IP55
Weight	230kg
Certificate	CE

2 Pole Explosion Proof Vibration Motor Dimension (unit: mm)

A	B	AB	BB	D	L	J	G	H	HD	d	Bolt
280	180	360	380	298	655	100	30	160	350	38	M36

3 kW Explosion Proof Vibration Motor Applications

Details

Tips: 3 start-up factors that affect explosion proof vibration motors

1. Thermal factors, such as the influence of the hottest spot temperature during exercise
2. Electrical factors, such as the influence of working voltage, operating overvoltage or electrical stress caused by atmospheric overvoltage.
3. Environmental factors, such as atmospheric pressure, the cause of the insulation cracking of the chemical vibration motor of the surrounding gas.
