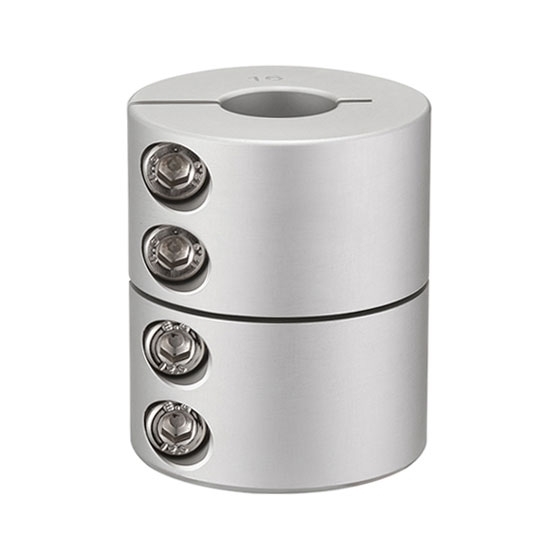

Rigid Coupling, 25 X 36mm

0 reviews • Write a review

from

$109.86

Ex Tax: $109.86

Stock: In Stock
Model: RDDLZ-SC-GNC-2536
Weight: 1.00
SKU: RDDLZ-SC-GNC-2536

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Rigid clamp coupling has the superior performance of light weight, ultra-low inertia and high sensitivity, diameter 1 inch x length 1.4 inch, bore 6mm to 12mm, rigid coupling is made of aluminum alloy material, which has a long service life.

Specification

Model	RDDLZ-SC-GNC-2536
Rated Torque	12 Nm
Allowable Speed	6000rpm
Moment of inertia	2.7 X 10^-6
d1/d2 Inner Diameter Size	5-6-6.35-7-8-9-9.525-10-12
Φd	25
L	36
F	6
Moment of inertia	M3
Tightening Torque	1.5 N.m
Weight	43g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

25 x 36mm Rigid Coupling Dimension (unit: mm)

Tips: How to fix the shaft coupling?

1. Set screw fixation. The two set screws have a gap of 90º to lock the fixed shaft. In the traditional fixing method, because the front end of the screw contacts the shaft, it may cause damage to the shaft or difficulty in disassembly.

2. Clamping screw fixation. Use the tightening force of the hexagon socket bolt to shrink the slit and clamp the shaft tightly. This method is convenient to fix and disassemble, and it will not cause damage to the shaft. It is a very common fixing method.

3. Keyway type fixation. Suitable for high-torque transmission. In order to prevent axial sliding, it is usually used together with set screw fixation and clamping screw fixation.

4. D-shaped hole fixing. Usually, if the shaft of the motor is D-shaped, if the positioning screw cannot be fixed, the hole of the coupling can be processed into a D-shaped hole corresponding to the size of the motor shaft, and the positioning is coordinated The screws are fixed, so there is no need to worry about slipping.

5. Expansion sleeve fixation. Tighten and fix the account cover by tightening the four positioning screws on the end of the coupling. It is suitable for the connection and fixation of some stepping motors and servo motors with large torque, such as expansion sleeve diaphragm couplings, expanding sleeve plum blossom coupling, expanding sleeve bellows coupling, etc.
