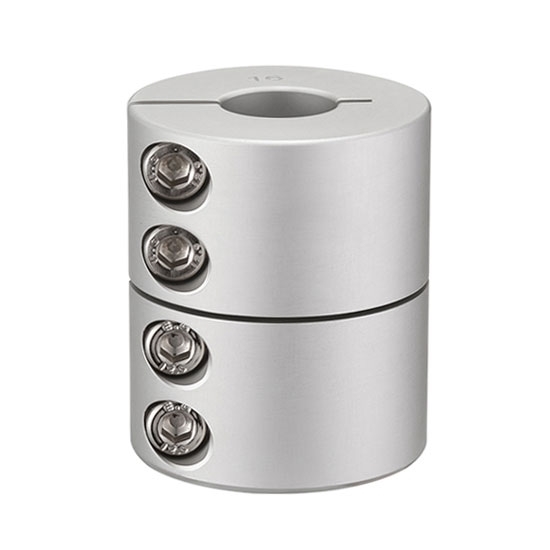

Rigid Coupling, 16 X 16mm

0 reviews • Write a review

from

$99.85

Ex Tax: $99.85

Stock: In Stock
Model: RDDLZ-SC-GNC-1616
Weight: 1.00
SKU: RDDLZ-SC-GNC-1616

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4mm to 8mm rigid coupling made of high-strength aluminum alloy, clamping screw tightening method, 16mm length, 16mm width, rigid couplings basically do not allow eccentricity, and must be fully eccentrically adjusted during use.

Specification

Model	RDDLZ-SC-GNC-1616
Rated Torque	5 Nm
Allowable Speed	9400rpm
Moment of inertia	2.9 X 10^-7
d1/d2 Inner Diameter Size	3-4-5-6-6.35-7-8
Φd	16
L	16
F	3.75
Moment of inertia	M2.5
Tightening Torque	1 N.m
Weight	7g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Rigid Clamp Coupling Dimension (unit: mm)

Tips: Types Of Shaft Coupling

1. Rigid coupling
Rigid couplings are divided into sleeve couplings and flange couplings.

2. Flexible coupling
Flexible coupling without elastic elements: disc pin coupling, cross slide coupling, single universal joint coupling, double universal joint coupling, gear coupling, chain coupling. Flexible couplings with elastic elements are elastic couplings: flexible couplings with metal elastic elements and flexible couplings with non-metallic elastic elements. Among them, flexible couplings with non-metallic elastic elements are divided into elastic sleeve pins Couplings, elastic pin couplings, tire couplings, elastic disc couplings.
