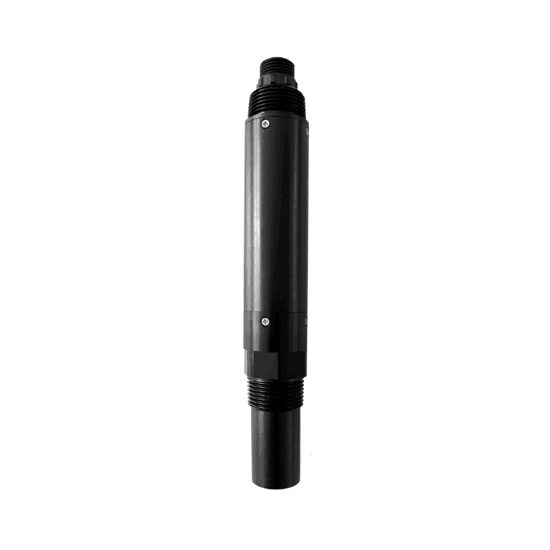

EC (Electrical Conductivity) Sensor For Water Quality, 0~200 μS/cm

0 reviews • Write a review

from

$555.89

Ex Tax: $555.89

Stock: In Stock
Model: RDDLZ-WQS-EC
Weight: 1.00
SKU: RDDLZ-WQS-EC

Available Options

Short Description

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The conductivity sensor measures 0~200 μS/cm (TDS 0~100 mg/L) with high accuracy (±1.5%) and fast response (<10s). It features automatic temperature compensation, RS485 output, and durable construction, ideal for water treatment, monitoring, and irrigation.

Specification

Model	RDDLZ-DDM-206
Principle	Electrode Method
Range & Resolution	0~20 μS/cm (TDS 0~10 mg/L), Resolution: 0.01
Range & Resolution	0~200 μS/cm (TDS 0~100 mg/L), Resolution: 0.1
Accuracy	±1.5%; ±0.3°C
Response Time (T90)	<10s
Calibration Method	Two-point calibration
Temperature Compensation	Automatic temperature compensation (Pt1000)
Output Mode	RS485 (Modbus RTU)
Storage Temperature	-5~65°C
Operating Conditions	0~60°C, ≤0.6 MPa
Outer Material	POM
Installation Method	Submersion installation, 3/4 NPT
Power Consumption	0.2 W @12V
Power Supply	12~24 VDC

Feature

Wide Application Range: Ideal for drinking water, groundwater, industrial water, and various water treatment applications.
Simultaneous Output: Measures and outputs both electrical conductivity (EC) and total dissolved solids (TDS) for comprehensive water quality analysis.
Advanced Signal Output: Equipped with RS-485 (Modbus RTU) protocol for seamless integration with PLCs, DCS, industrial control computers, general controllers, or third-party devices like touch screens or recorders.
Flexible Installation: Supports submersion installation with a 3/4 NPT threaded connection, making it suitable for immersion in open water systems or pipe installations.
High Durability: Features IP68 protection for reliable operation in challenging environments, ensuring resistance to dust and water immersion.
High Measurement Precision: Offers a range of 0~200 μS/cm with high accuracy and resolution for precise water quality monitoring.
Automatic Temperature Compensation: Built-in Pt1000 temperature compensation ensures accurate readings across varying environmental conditions.

Dimension (Unit: mm)

0~20 μS/cm

0~200 μS/cm

Installation Method

Note: Install the test at least 2 cm from the bottom and side walls of the container. The sensor should not be installed upside down or horizontally, but at least at an angle of 15 degrees or more. The interface of sidewall mounting must be beveled at 15 degrees, otherwise it will affect the normal testing and use of the electrodes.

Application

Tips: What makes this sensor environmentally friendly?

The water quality sensor uses non-invasive and chemical-free methods to measure conductivity and TDS, reducing the need for reagents or harmful chemicals. Its durable and long-lasting design minimizes waste, and the low power consumption (0.2W @12V) ensures energy-efficient operation. These features make it an eco-friendly choice for sustainable water quality monitoring.
