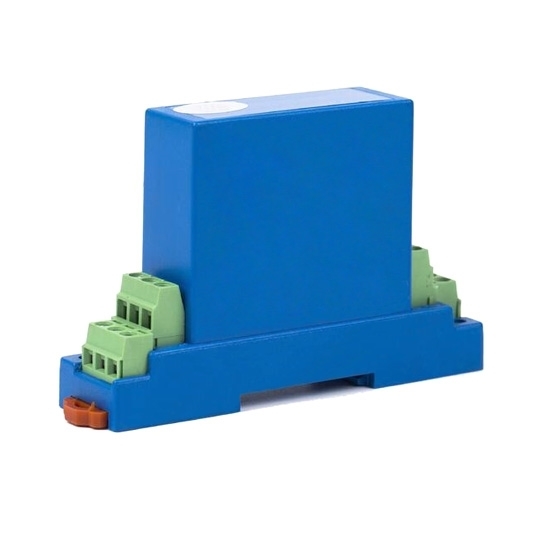

AC/DC voltage sensor has measuring range of AC/DC 75mV/30V/50V/100V/250V/300V to 500V.

Specification:

Model	RDDLZ-WBV122S01	RDDLZ-WBV124S01	RDDLZ-WBV125S01	RDDLZ-WBV127S01
Shipping weight	1kg
Measuring range of input voltage *	AC/DC 0-75mV ~ 0-500V
Short-time overload	2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 120% measuring range
Frequency range	±DC/20Hz ~ 10kHz
Input impedance	When Ux＞1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
Output signal *	DC 0-5V, 0-10V (only for power supply DC 24V)	DC 4-20mA, 0-20mA	True RMS DC 0-5V, 0-10V (only for power supply DC 24V)	True RMS DC 4-20mA, 0-20mA
Power supply *	DC 12V±10%, DC 24V±10%
Accuracy	0.5%F.S.
Load capacity	5mA	6V	5mA	6V
Response time	≤250ms
Temperature drift	250*10^-6/℃	300*10^-6/℃	250*10^-6/℃	300*10^-6/℃
Static current	≤34mA	Output 0-20mA: ≤34mA Output 4-20mA: ≤38mA	≤30mA	≤40mA
Isolation features	Isolation between input and output, output terminals provides power supply
Isolation voltage	DC 1.5kV, 1 min
Work temperature	-25~+70℃	-25~+70℃	0~+50℃	0~+50℃
Storage temperature	-25~+70℃	-25~+70℃	-25~+70℃	-25~+70℃
Input/Output isolation capacitance	-		6pF (below 1kHz)
Common mode rejection ratio (CMRR)	-		160dB (under condition of 50Hz)
Protection class	IP20
Mean time between failures	＞50000h
Housing material	Fire-retardant ABS
Wiring	Terminal connection
Installation	DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation

AC/DC voltage sensor 75mV to 500V dimensional drawing (unit: mm):

AC/DC voltage sensor 75mV to 500V wiring diagram:
(The left diagram is for voltage output, the right diagram is for current output.)

Tips: How to install the voltage sensor?

There are 3 installation methods of voltage sensor:

Pin-welding installation of the circuit board: Make lines on the circuit board, and weld the voltage sensor to the circuit board like a component. Its advantages are small size, light weight, space saving and easy installation.
Screw fixation installation: The voltage sensor is screwed to the bottom of the chassis or a fixed position, and the external connection is through a variety of different terminals. The advantages are very firm and easy to disassemble.

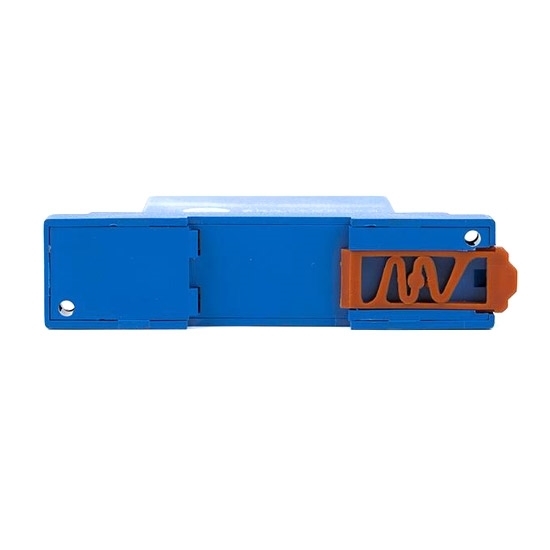

DIN rail installation: There is a standard 35mm wide dovetail groove on the bottom of the voltage sensor, which can be installed at DIN rail. Its advantages are convenient, versatile, and suitable for field work installation.
