Capacitive Proximity Sensor, M18, NPN, NO/NC

0 reviews • Write a review

from

$39.29

Ex Tax: $39.29

Stock: In Stock
Model: RDDLZ-PROS-C18
Weight: 1.00
SKU: RDDLZ-PROS-C18

Available Options

Short Description

Specification Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

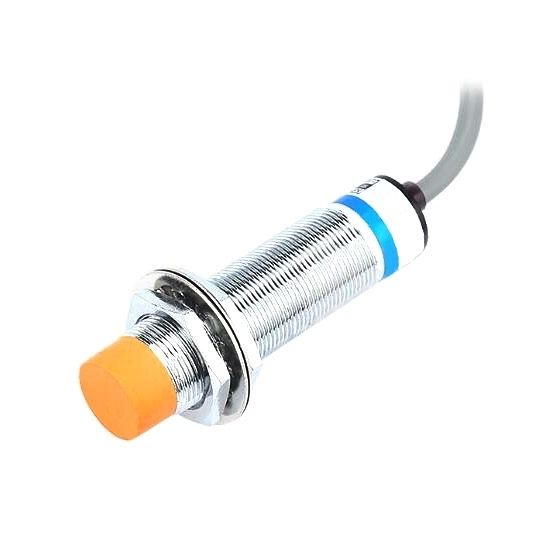

Capacitive proximity sensor with M18*1 thread, NPN type output, manufacturer direct sale. The proximity sensor has an IP67 protection level and is dustproof and waterproof.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC

Specification

Model			RDDLZ-PSC-18ABZ
Installation type			Unshielded	Shielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
		PNP	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
Detection range			10mm±10%	5mm±10%
Setting distance			0-8mm	0-4mm
Delay distance			≤10% detection range
Detection object			Any dielectric substance
Standard detection object			SPCC iron 50501mm
Response frequency			DC: 0.5kHz, AC: 25Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Wiring diagram

Tips: Types of proximity sensor

According to the working principle, proximity sensors can be divided into:
Inductive type: Used to detect a variety of metals
Capacitance type: Used to detect a variety of conductive or non-conductive liquid or solid
Photoelectric type: Used to detect all lightproof materials
Ultrasonic type: Used to detect the material that ultrasonic wave cannot pass through
Electro-magnetic induction type: Used detect magnetic or non-magnetic metal
According to design and shape, they can be divided into cylindrical type, square type, and ditch type, perforating type and separated type.
Cylindrical type is more convenient in the installation than square one with same detection features. The testing part of ditch-type is inside the groove for detecting objects that pass through the groove. Perforating type is used for small parts of small screws or balls, and assembles with buoys into a level detection device.
According to power supply method, they can be divided into DC type and AC type.
According to the output form, they can be divided into DC two-wire type, DC three-wire type, DC four-wire type, AC two-wire type and AC three-wire type.
