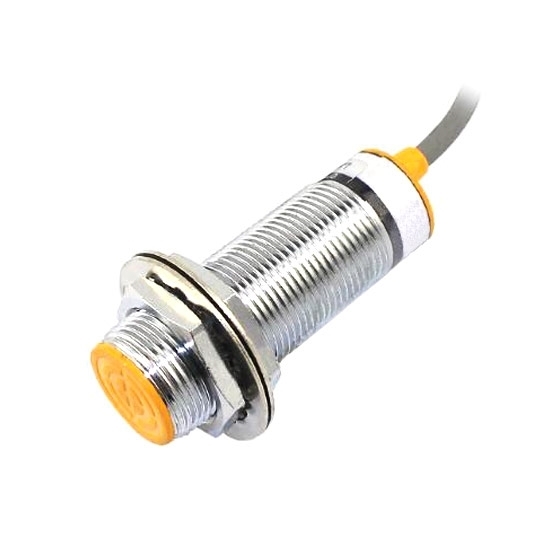

Proximity Sensor, Capacitive, M24, 2 Wire, 120V

0 reviews • Write a review

from

$39.34

Ex Tax: $39.34

Stock: In Stock
Model: RDDLZ-PROS-C24
Weight: 1.00
SKU: RDDLZ-PROS-C24

Available Options

Short Description

Specification Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Capacitive proximity sensor with M24*1.5 thread, AC 2 wire output, manufacturer direct sale. The operating temperature range of the 2 wire proximity sensor is -30~65℃ (non-freezing or condensation), and it can adapt to a wide temperature range.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC

Specification

Model			RDDLZ-PSC-24A8J
Installation type			Shielded	Unshielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
		PNP	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
Detection range			8mm±10%	15mm±10%
Setting distance			0-7mm	0-13mm
Delay distance			≤10% detection range
Detection object			Any dielectric substance
Standard detection object			SPCC iron 50501mm
Response frequency			DC: 0.5kHz, AC: 25Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Wiring diagram

Tips: Proximity sensor application

Detect distance: Detect stop, starting and moving position of elevators and lifting appliance. Detect vehicle location to prevent the collision of two objects. Detect the setting position of working machine and the limiting position of removable machines or components. Detect the stop position of revolution, valve opening and closing position. Detect the movement position of hydraulic cylinder or air cylinder piston.
Size control: Metal plate punching and shearing size control device. Automatic selection and identification of metal piece length. Automatically loaded stacking height. Detect length, width, height and volume of detection objects.
Detect the existence of objects: Detect product packaging boxes on the production line. Detect whether there are product parts.
Rotational speed and speed control: Control the speed of conveyor belt, rotating machinery; control rotation speed and number by a variety of pulse generators.
Counting and control: Detect the number of products on the production line, revolution measurement of high-speed rotation axis or disk and the number of components.
Anomaly detection: Detect bottle caps; specifications between qualified and unqualified products; metal and non-metallic parts; product labels; crane danger zone alarm; escalator automatic start-stop system.
Metrological control: Automatic measurement of products or parts. Detect the indicator range of meters and instrument to control number and flow. Detect the buoy to control the side height and flow. Detect the iron buoy in stainless steel bucket. Control of upper or lower limit of instrument measuring range. Flow control and horizontal control.
Identify the object according to the code.
Information transmission: In the production line (50-100 meters), data transmission of all sensors connected with ASI (bus).
