Proximity Sensor, Capacitive, M30, 2 Wire, 110V

0 reviews • Write a review

from

$39.55

Ex Tax: $39.55

Stock: In Stock
Model: RDDLZ-PROS-C30
Weight: 1.00
SKU: RDDLZ-PROS-C30

Available Options

Short Description

Specification Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

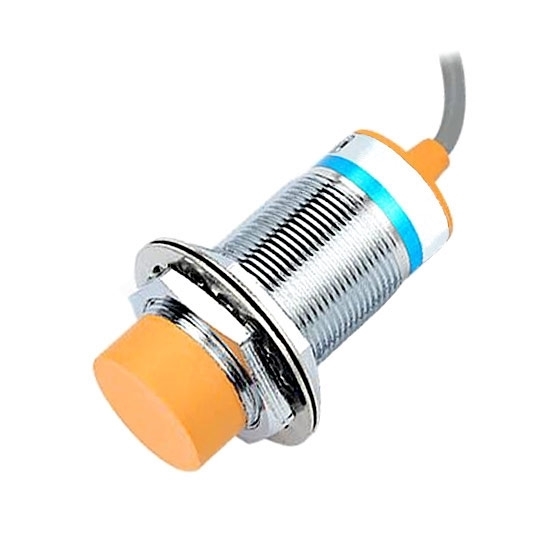

Capacitive proximity sensor with M30*1.5 thread, AC 2 wire output, manufacturer direct sale. The capacitive proximity sensor shell is made of nickel-plated brass, and the detection surface is made of ABS plastic, which is highly corrosion-resistant.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC

Specification

Model			RDDLZ-PSC-30AHJ
Installation type			Unshielded	Shielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
		PNP	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
Detection range			20mm±10%	10mm±10%
Setting distance			0-18mm	0-8mm
Delay distance			≤10% detection range
Detection object			Any dielectric substance
Standard detection object			SPCC iron 50501mm
Response frequency			DC: 0.5kHz, AC: 25Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Wiring diagram

Tips: Parallel and series connection of proximity sensor

Parallel connection: OR connection, NPN and PNP type can't be used in combination. Parallel proximity sensors are in OR connection. The load can be driven once any one of proximity sensors is operating. The number of proximity sensor depends on the sum of leakage current. As long as it does not affect the load operation, more proximity sensors can be connected.
Series connection: When proximity sensors are in AND connection, the load can be driven by all the proximity sensors operation. The number of proximity sensors depends on the sum of their saturation voltages. As long as it does not affect the voltage of power supply, more proximity sensors can be connected. The response frequency of proximity sensor is the accumulation of initial reset of each proximity sensor.
