Note:

Unsalable status.
This brass ball valve can not be used for drinking water.

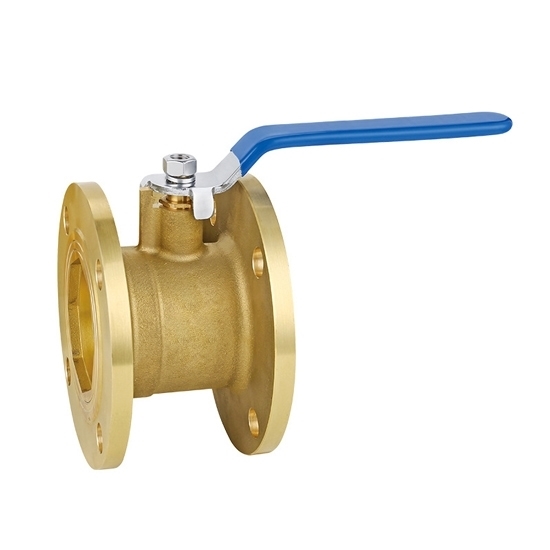

4 inch (DN100) brass flanged ball valve is used to control fluid flow in piping systems. Made from brass, it offers corrosion resistance, making it suitable for water, oil, gas, and some chemical applications.

Specification

Model: RDDLZ-YQ-1030-DN100
Size: 4 inch (DN100)
Body Material: Brass
Nominal Pressure: 1.6MPa
Applicable Temperature: -20℃≤T≤150℃
Working Media: Water, Oil, Non-corrosive and Non-flammable Gases
Flange Standard: GB9113 Standard

Dimension (Unit: mm)

DN	L	H	D1	D	B	n-d
100	142	139	245	180	73	8-18

Tips: What advantages can a brass ball valve bring?

Good sealing performance: Since the sealing of the hard-sealed ball valve is artificially ground, it cannot be used until the valve core and the sealing ring are completely matched. So his sealing performance is reliable.
Light switch: Since the bottom of the sealing ring of the hard-sealed ball valve adopts a spring to hold the sealing ring and the valve core tightly together, the switch is very light when the external force exceeds the preload of the spring.
Long service life: It has been widely used in petroleum, chemical industry, power generation, papermaking, atomic energy, aviation, rocket and other departments, as well as people's daily lives.
