15 KVA Isolation Transformer, Step Up/step Down 415V With 208V

0 reviews • Write a review

from

$3,203.97

Ex Tax: $3,203.97

Stock: In Stock
Model: RDDLZ-T-SG15KVA
Weight: 1.00
SKU: RDDLZ-T-SG15KVA

Available Options

Protection Grade

Winding Material

Primary Voltage (AC)

Transformer Type

With Movable Wheels

Secondary Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

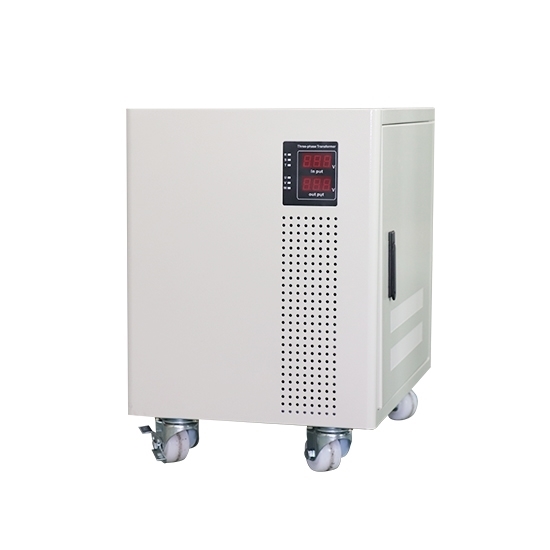

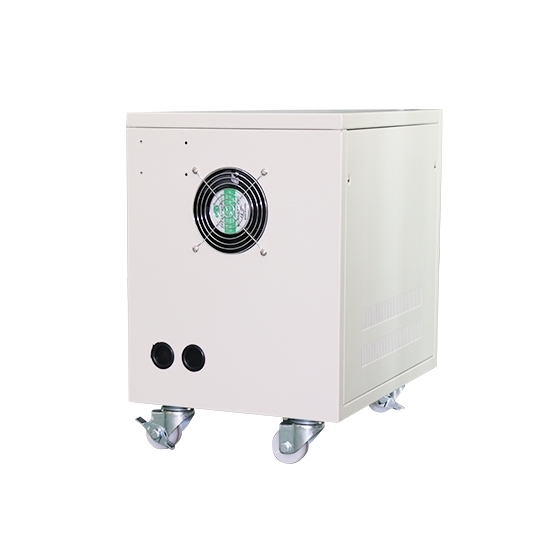

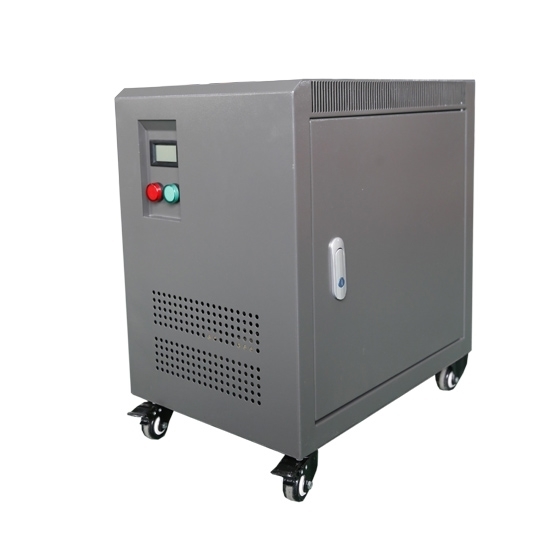

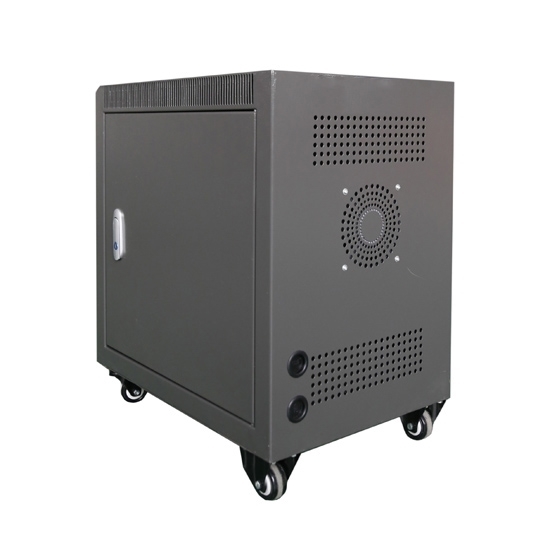

15kVA isolation transformer is dry type air self cooling one, Which is available in the circuit of AC 50Hz/60Hz and step up 3 phase voltage 208V to 415V, also step down 415V to 208V vertion for selection, long life span and high efficiency.

15 kVA Isolation Transformer Specifications

Basics	Model	RDDLZ-SG15KVA
	Phase	3 phase
	Capacity	15 kVA
	Weight of Aluminium Wire Transformer	Open type: 100kg Protected type: 130kg
	Weight of Copper Wire Transformer	Open type: 105kg Protected type: 135kg
Technical Parameters	Primary Voltage	415V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
	Secondary Voltage	208V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
	Voltage Convert	Three phase to three phase
	Frequency	50Hz / 60 Hz
	Winding Material	Aluminium/Copper wire (Optional)
	Work Efficiency	≥95%
	Insulation Resistance	≥50 MΩ
	Electrical Strength	3000V AC/1 min
	Noise	<35-65dB (1 meter)
	Insulation Grade	H level
	Wiring Mode	Dyn11
	Cooling Mode	Dry type air cooling
	Overload Capacity	Allow more than 1.2 times rated load to work for up to 4 hours
	Enclosure Protection Grade	IP24 or IP54 (Optional)
	Certificate	CE, ISO
	Warranty	12 months
Working Environment	Temperature	-15℃~+40℃
	Humidity	≤90%RH, without condensation
	Altitude	<1000m, non corrosive gas and conductive dust

Note:
Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

3 Phase Isolation Transformer Schematic Diagram

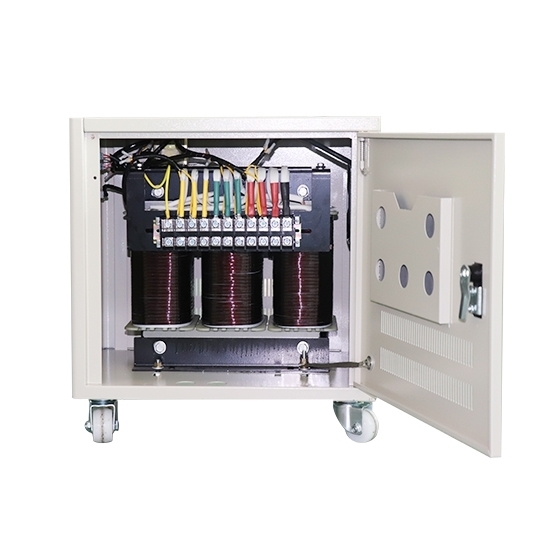

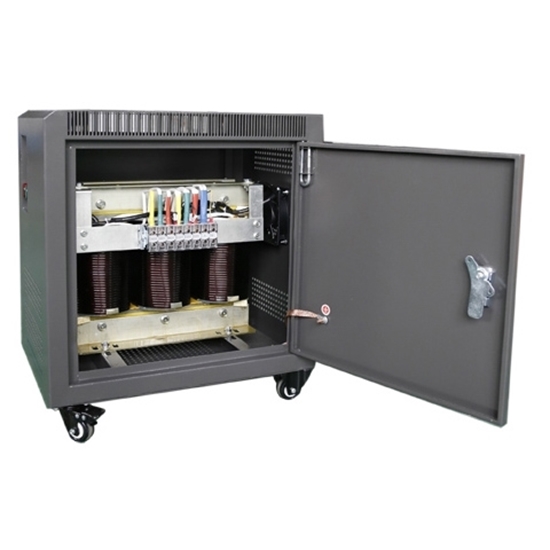

3 Phase Isolation Transformer Details

15 kVA Isolation Transformer Installation Dimension

Aluminium Wire Transformer Size				Copper Wire Transformer Size
Open type: abc=380280380mm				Open type: abc=380260380mm
Mouting size: de=260180mm				Mouting size: de=260160mm
Protected type: ABC=380530560mm				Protected type: ABC=380530560mm

Tips: RDDLZ three phase isolation transformer working principle

Three phase isolation Transformer mainly applies electromagnetic induction principle to work, the working principle details are as follows: When the primary side of the isolation transformer is applied with the alternating voltage U1 and the current flowing through the primary winding is I1, then the current will generate alternating magnetic flux in the iron core to generate electromagnetic connections between the primary winding and the secondary winding.

According to the electromagnetic induction principle, electromotive force will be induced when the alternating magnetic flux goes through these two windings. The magnitude of electromotive force is proportional to the winding turns and the maximum main flux, the voltage of more winding turns is high and the voltage of less winding turns is low. When the secondary side of the transformer opens circuit, that is to say when the transformer is no-load, the primary and secondary end voltage is proportional to the number of the primary and secondary winding turns, that is U1/U2 = N1/N2, but the primary and secondary frequency stays the same to realize the change of voltage.
