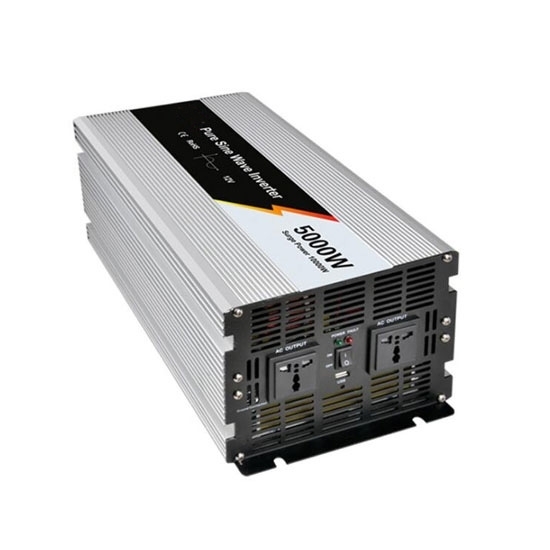

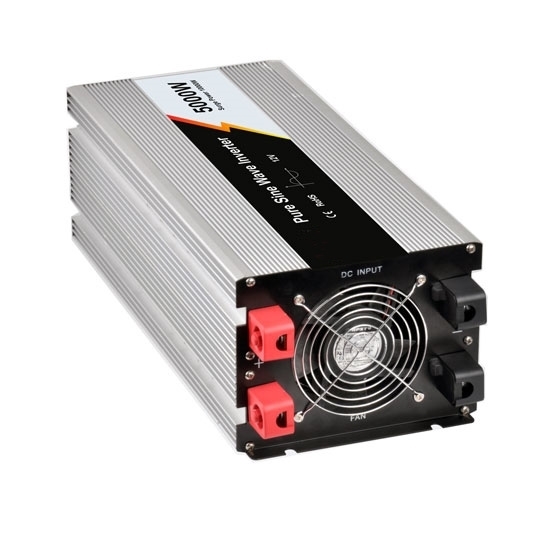

5000 Watt Pure Sine Wave Power Inverter, 24V DC To 220V AC

0 reviews • Write a review

from

$989.31

Ex Tax: $989.31

Stock: In Stock
Model: RDDLZ-PI-5000W
Weight: 1.00
SKU: RDDLZ-PI-5000W

Available Options

Short Description

Remote Control

LCD Display

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

5000W 12V/24V/48V DC to 110V/220V AC pure sine wave power inverter for sale, ideal for charging both resistive and sensitive electronics or appliances like cell phones, digital cameras, laptops, air conditioner, refrigerator, power tools and so on at home or outside like road trip, vacation, camping and any places where the AC power is needed.

Specification

Model	RDDLZ-PSWI-5000
Output Power	5000 Watt
Peak Power	10000 Watt
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input Voltage*	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Input DC Voltage Range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Output Voltage*	100V AC or 110V AC or 120V AC ±5%			220V AC or 230V AC or 240V AC ±5%
No-load Current (less-than)	1.5A	1A	0.8A	1.5A	1A	0.8A
Output Frequency*	50Hz±0.5Hz or 60Hz±0.5Hz
Output Wave	Pure sine wave
Waveform Distortion	THD＜3% (linear load)
USB Port	5V 1A
Outlets Type	2Universal outlet and 4USA outlet
Max. Working Efficiency	90.0%
Low Voltage Alarm	10.5V±0.5V	21V±0.5V	42V±1V	10.5V±0.5V	21V±0.5V	42V±1V
Low Voltage Shutdown	10V±0.5V	20V±0.5V	40V±1.5V	10V±0.5V	20V±0.5V	40V±1.5V
Low Voltage Recovery	13V±0.5V	24V±0.5V	48V±1V	13V±0.5V	24V±0.5V	48V±1V
Over Voltage Shutdown	15.5V±0.5V	31V±0.5V	61V±1V	15.5V±0.5V	31V±0.5V	61V±1V
Over Voltage Recovery	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection	Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection
Cooling Way	Intelligent air cooling
Remote Control*	Wired control (2m) or Wireless control (30m)
LCD Display*	Display input voltage, output voltage, frequency, power, waveform, battery capacity
Operating Temperature	﹣10℃~ +50℃
Storage Temperature	﹣30℃~ +70℃
Humidity	≤90%, non-condensing
Dimensions (WHD)	519210156mm
Package Size (WHD)	545300245mm
Net./Gross Weight	10.6kg/12.7kg
Certificate	CE, RoHS
Warranty	12 Months

Features

5000 Watt continuous power and 1000 Watt peak power
Pure sine wave inverter, capable of producing clean & stable electricity
Soft-start technology
USB charging port for powering your phone, laptop, etc.
Aluminum alloy casing with good heat dissipation
Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
ON/OFF switch design, easy to use
Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

LCD Display (Optional)

The LCD display will show input voltage, output voltage, frequency, power, waveform, and battery capacity.

Protection Functions & Applications

Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Using a car inverter with engine off: is it possible and for how long?

Yes. In the use of low-power appliances below 350 watts, normally the car battery can provide 30-60 minutes of power with the engine off. If only one laptop with 50-60 watts is charged, it will last longer time. For true pure sine wave power inverters, they have an under voltage alarm and under voltage protection circuit. When the battery is used for a long time and the voltage drops to 10V, the under voltage protection circuit starts and the output voltage is cut off and alarms, to prevent that the battery’s voltage is too low to start the engine.

Take another battery of the same voltage, and respectively connect its positive and negative electrodes to the positive and negative electrodes of the original vehicle battery with thick wires. In this way, the power inverter can be used greatly longer.
