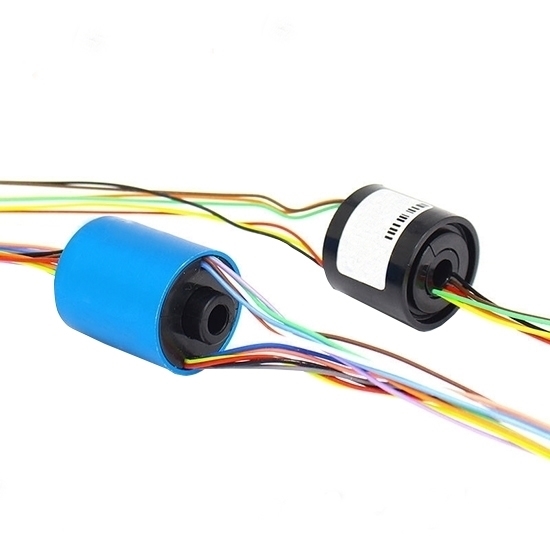

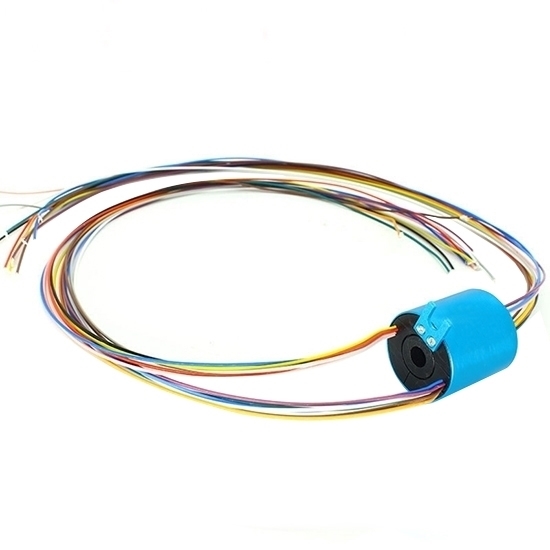

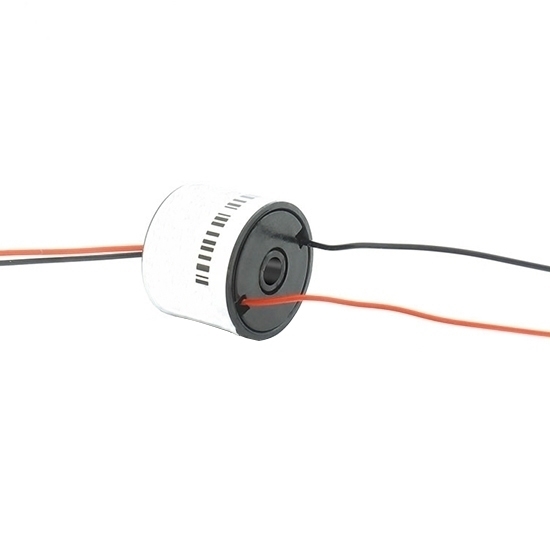

Miniature Through Hole Slip Ring, Inner Diameter 3/5/8mm

0 reviews • Write a review

from

$76.92

Ex Tax: $76.92

Stock: In Stock
Model: RDDLZ-THSR-358
Weight: 1.00
SKU: RDDLZ-THSR-358

Available Options

Rotating Speed Grade

Inner/Outer Diameter

Circuits Quantity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Inner diameter, outer diameter, number of circuits, current, signal and other specifications of the through hole slip ring are customizable according requirements.
Miniature through hole slip rings adopt integrated structure design and is easy to install. Compared with similar products, it has the advantages of smaller size, higher rotation accuracy, more stable performance and longer service life.
It can be used for industrial applications such as hydraulic or pneumatic devices and other devices that require 360° rotation to conduct or transmit various control signals.

Specification

Model	RDDLZ-H0317	RDDLZ-H0522	RDDLZ-H0835
Inner Diameter (ID)	3mm	5mm	8mm
Outer Diameter (OD)	17mm	22mm	35mm
Lead Wire Spec.	AWG26# Silver-plated teflon	AWG26# Silver-plated teflon	AWG22# Silver-plated teflon
Rated Voltage	0~240VAC/VDC	0~240VAC/VDC	0~440VAC/VDC
Working Life	refer to product grade table
Rotating Speed	refer to product grade table
Working Temp.	-30℃~80℃
Work Humidity	0~85% RH
Contact material	refer to produce grade table
Housing Material	AL alloy
Torque	0.05N.m (+0.02N.m/6 circuits)
Insulation Resistance	≥500mΩ/500VDC
Certification	CE, RoHS
Lead Wire Length	standard 300mm (can be customized)
Dielectric Strength	500VAC@50Hz,60s
Electrical Noise	<0.01Ω
IP Grade	IP51

Note: Please contact us if you need the flange

RDDLZ-H0317 Through Hole Slip Ring Dimension Drawing (unit: mm)

RDDLZ-H0522 (6 Circuits) Through Hole Slip Ring Dimension Drawing (unit: mm)

RDDLZ-H0522 (12 Circuits) Through Hole Slip Ring Dimension Drawing (unit: mm)

RDDLZ-H0835 Through Hole Slip Ring Dimension Drawing (unit: mm)

Product Grade Table

Grade code	Max rotating speed	Working life	Contact material
C: standard	250rpm	20 millisons revolutions	gold alloy
D: industrial	600rpm	60 millions revolutions	precious metal
H: high quality	1000rpm	150 millisons revolutions	precious metal

Color Code of Lead Wire

ring #	1	2	3	4	5	6	7	8	9	10	11	12
color	BLK	BRN	RED	ORG	YEL	GRN	BLU	PUR	GRY	WHT	PINK	LGT BLU

Through Hole Slip Ring with Anti-Rotation Tab Installation Diagram

Through Hole Slip Ring without Anti-Rotation Tab Installation Diagram

Tips: What is a through hole slip ring?

The through hole slip ring is also called through bore slip ring, is a rotating conductive device with a middle hole structure. Through hole slip rings are mainly used to transmit precision signals, weak currents, high currents, high voltages, and the like. It features low torque, low loss, maintenance-free, low electrical noise, and long life. The through hole conductive slip ring is mainly composed of metal ring and brush wire, and contact modes of the two are points contact type and surface contact type. The contact resistance of slip rings directly affect the effect of signal transmission. In general, the smaller the contact resistance, the better. For the factors affecting the magnitude of contact resistance, in addition to contact materials and contact form of the contact surface, it also include the pressure of brush wires on the slip ring. The greater the pressure, the smaller the contact resistance, but the increase in pressure has a certain limit. If the limit is exceeded, the friction torque will increase, causing the contact portion to wear greatly. Through hole slip rings generally use the number of revolutions as an indicator of their life. The maximum service life of a through hole slip ring is approximately tens of millions of revolutions. If the slip ring is used in application require high speed rotation, its life is limited. Therefore, it is necessary to regularly check the performance of through hole slip rings to ensure reliable operation in actual use.
