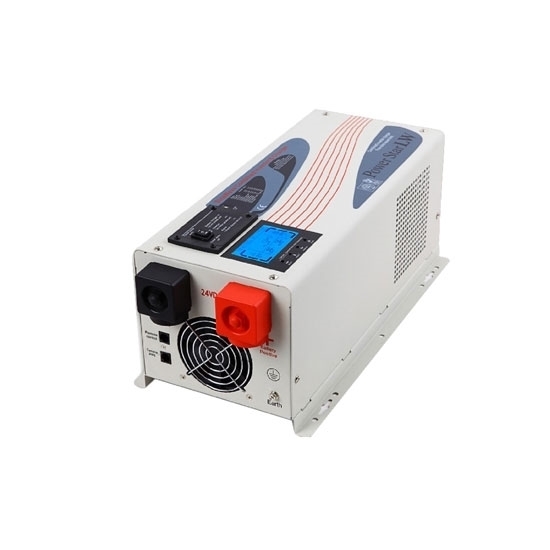

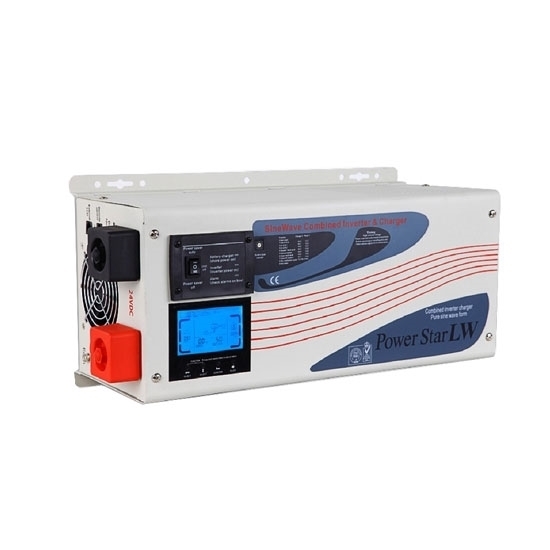

2000 Watt 12V/24V Pure Sine Wave Inverter Charger

0 reviews • Write a review

from

$794.85

Ex Tax: $794.85

Stock: In Stock
Model: RDDLZ-PI-LW2000
Weight: 1.00
SKU: RDDLZ-PI-LW2000

Available Options

Remote Control

Input DC Voltage (V)

Input & Output AC Voltage (V)

Input Battery Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2000W 12V/24V/48V inverter / charger has the surge power that is 3 times of rating power, low frequency type with transformer, UPS function, delivering reliable pure sine wave power for charging the devices like a fridge, microwave, TV, power tools, computers, LEDs, fans and other sensitive electronics. The inverter charger is widely applied in wind generator, solar power system, house, vehicle, ship, navigation, mobile electricity work and telecommunications device, launch station and anywhere the AC power is needed.

Features

2000 Watt continuous output power and 6000 Watt peak power
Pure sine wave output, available for sensitive loads such as air conditioner, motor door, etc.
Fast and powerful inverter charger, 3-step progressive charging, 7 battery type selector
High power factor
Automatically transfer between battery and line mode
Microprocessor control guarantees the high reliability

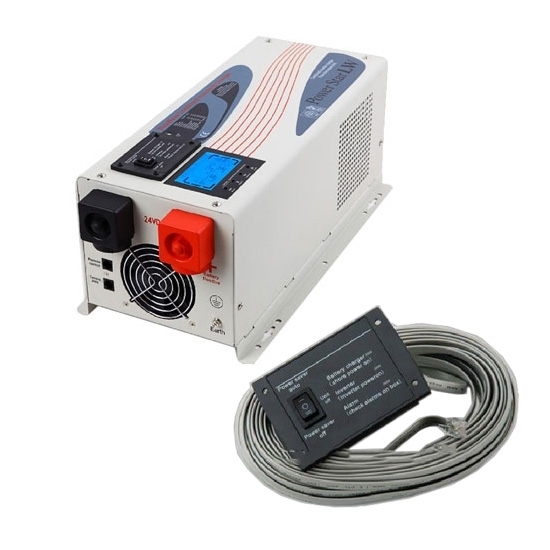

Optional remote control function
Multi safety protections against over load, over temperature, over charging, and low battery
LCD digital display shows voltage, load and battery info in real time
Apply for split phase system, 2 live lines 1 neutral line, and voltage is 120V/240V

2000W Inverter/Charger Specification

Model		LW2000
Power		2000 Watt
AC Input	Phase	Single Phase
	Waveform	Pure Sine Wave
	Voltage*	110V/120V AC or 220V/230V/240V AC
	Acceptable Voltage	95-126V AC or 194-253V AC±4%
	Low Line Disconnect	85V AC±4% or 184V AC±4%
	Low Line Re-connect	95V AC±4% or 194V AC±4%
	High Line Disconnect	136V AC±4% or 263V AC±4%
	High Line Re-connect	126V AC±4% or 253V AC±4%
	Frequency	50Hz: 41-54Hz or 60Hz: 51-64Hz (Auto detection)
AC Output	Phase & Waveform	Single Phase & Pure Sine Wave (bypass mode sync to input)
	Voltage*	110V/120V AC or 220V/230V/240V AC 120V/240V AC split phase output Also Available: L1+L2=240V, L1+N=120V, L2+N=120V
	Voltage Regulation	±10%rms (bypass mode sync to input)
	Frequency	50Hz±0.3Hz or 60Hz±0.3Hz (bypass mode sync to input)
	Peak Power	3 times of rating power (6000W)
	Short Circuit Protection	Yes, shutdown after 10ms
	Power Factor	0.9-1.0
	Outlet	Universal socket + wiring terminal block
DC Input	Battery Voltage*	12V DC	24V DC	48V DC
	Minimum Start Voltage	10V DC	20V DC	40V DC
	Low Battery Alarm	10.5±0.3V DC	21±0.6V DC	42±1.2V DC
	Low DC Input Shut-down	10±0.3V DC	20±0.6V DC	40±1.2V DC
	High DC Voltage Alarm & Fault	16±0.3V DC	32±0.6V DC	64±1.2V DC
	High DC Input Recovery	15.5±0.3V DC	31±0.6V DC	62±1.2V DC
	Max Charger Current	20A/35A/50A/75A/90A (According to the inverter model)
Efficiency	Line Mode	>96%
	Battery Mode	>85%
General	Power Saver	Load ≤ 25W (Enabled on "P/S auto" setting of Remote control)
	Audible Alarm	Sounding when the heat sink's temperature is over 105℃ and shutdown after 30 seconds.
	Over Load Protection	110%＜load＜150%, beeps 0.5s every 1s, and Fault after 60s. Load＞150%, beeps 0.5s every 1s, and Fault after 20s.
	Protections	Low battery, over charging, over temperature, over load
	Remote Control*	Wired remote control (5m) for power on/off
	Indicators	LCD display
	Operating Environment	0-40℃, 0-90%℃ RH (non-condensing)
	Protection Grade	IP20
	Audible Noise	<60dB
	Net Weight	19.5kg
	Dimension (LxWxH)	480×225×190mm

Note:
* It can be selected in the drop-down list.

Details

Inverter/Charger Working Principle & Applications

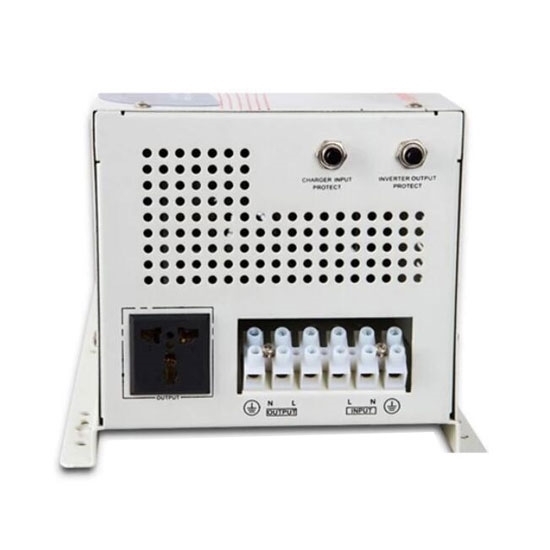

Inverter Split-Phase Output Terminal Description

Tips: Difference between Power Inverter and Variable Frequency Drive (VFD)

1. Power inverter is a component used to convert direct current (DC) into alternating current (AC). Variable frequency drive (VFD) is a device that is used to change AC frequency.

2. Inverter converts 12V/24V/48V DC power (batteries) into AC power (like 110V/120V/220V/240V pure sine wave), and the frequency can also be adjusted.

VFD converts the input AC power to the required frequency AC output. Its working principle is "AC-DC-AC" or "AC-AC", and "AC-DC-AC" form is more common. For the principle of "AC-DC-AC", first VFD converts AC to DC, and then converts DC to AC, that is, "rectifier + inverter".

3. VFD has the part to adjust the frequency, while the power inverter has a fixed output frequency.
