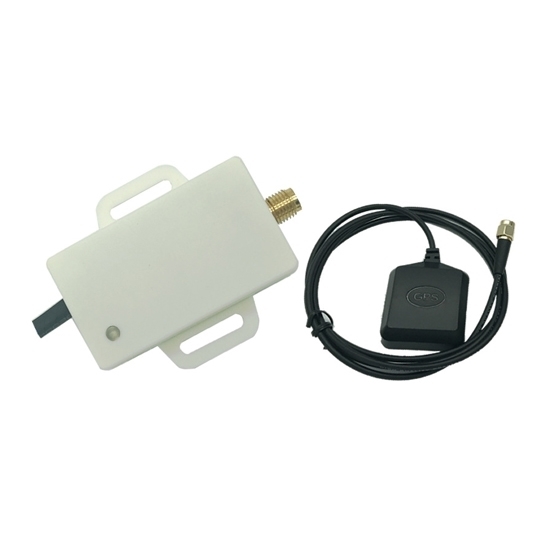

GPS Speed Sensor For Speedometer/Odometer/Tachograph

GPS Speed Sensor For Speedometer/Odometer/Tachograph
GPS Speed Sensor For Speedometer/Odometer/Tachograph
0 reviews • Write a review
from
$135.84
Ex Tax: $135.84
  • Stock: In Stock
  • Model: RDDLZ-SS-GS202
  • Weight: 1.00
  • SKU: RDDLZ-SS-GS202

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Good price GPS speed sensor supports negative and positive pulse output up to 50,000/km. It works at 8-32V operating voltage with a 1~2 years long life working period, specially designed for various speedometers and driving recorders.

Specifications

ModelRDDLZ-GS202
Size4.5cm (L) x1.9cm (W), 100cm Extension Cable
Operating Voltage8-32V
Input Voltage6-36V
Pulse SignalSupports negative and positive pulse output with a maximum of 50,000 pulses/km
Energy ConsumptionPassive Consumption240mW
Active Consumption (with Antenna) 480mW
Maximum Current Consumption <25mA
ErrorHorizontal Land<5m (50%), < 8m (90%)
Altitude<10m (50%), <16m (90%)
Speed<0.06m/sec=0.22km/h
Reaction Time After Locking<2s (90%)
First Power on<38s (50%), <42s (90%)
Temporary Power off<10s (50%), <13s (90%)
Operational RestrictionsAltitude18000m
SpeedMax 300km/h
ApplicationsVarious Speedometers, Driving Recorders


GPS Speed Sensor Cable Definition

  • RED: Power +, DC 8~32V (please connect a resistor like the image above)
  • BLACK: Ground
  • GREEN: Speed Pulse Signal Output +
  • BIUE: Speed Pulse Signal Output -

Please connect a GREEN or BLUE cable (one of the two) to your current Speedometer/odometer/tachograph.

GPS Antenna: Securely fasten the GPS antenna, preferably outdoors (ar inside front windscreen) so that it has a clear view of the sky to pick up satellite signals.

Working Principle

Tips: How to program the speed ratio to fit your current speedometer/odometer/tachograph?

  1. Connect the speed signal (Green or Blue) cable with your device.
  2. Power on GS202 GPS speed sensor and speedometer.
  3. Press the button via the hole, and hold on for 10 seconds, you will see the needle start running.
  4. Release the button, and wait for 5 seconds.
  5. Hold on to the button again, the needle will run in the opposite direction.
  6. Use steps 3~5, to make the needle point at 60km/h, then release the button and power.
  7. Setting is done.
  8. It fits the speed ratio range is 1~20,000ppk.
