Hall Effect Speed Sensor, M12

0 reviews • Write a review

from

$254.61

Ex Tax: $254.61

Stock: In Stock
Model: RDDLZ-HESS-M12
Weight: 1.00
SKU: RDDLZ-HESS-M12

Available Options

Short Description

Output Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

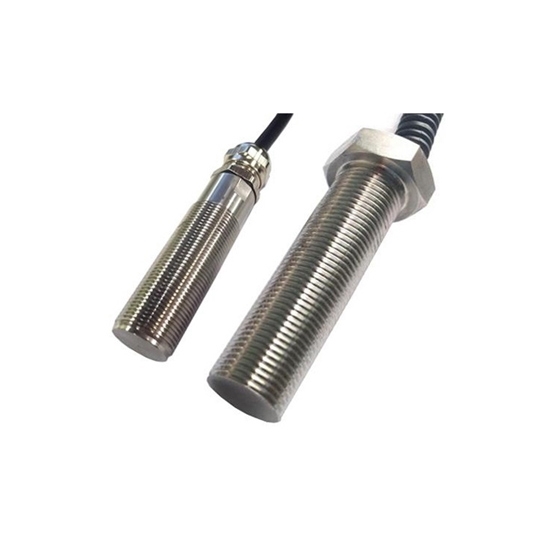

Low price Hall effect sensor is a non-contact measuring speed sensor. M12, low frequency can reach 0Hz, high frequency can reach 20KHz, which can meet the requirements of high speed measurement. Output signal level pulse/NPN/PNP can be chosen. The hall effect gear tooth sensor can be used for zero speed measurement of rotating machinery.

Specifications

Electrical Parameters
Model	RDDLZ-TSS
Type	Hall Effect Speed Sensor
Shell Shape	Threaded Cylinder
Shell Specifications	M12
Voltage	DC 4V~30V
Working Frequency	0Hz~20kHz
Measurement Method	Non-Contact Measurement
Sensing Range	Conventional: 0.5mm~3mm, Special Type: 0.5mm~7mm, Measuring Magnet: 0.5mm~30mm
Number of Output Channels	Single Channel
Output Signal Type	Level Pulse, NPN, PNP
Mounting Type	Cable Direct Outlet
Cable Length	2m (Default), Contact Us for Other Options
Output Waveform	Rectangular Wave
Output Amplitude	High Level≥Power Supply -0.3V, Low Level ≤0.3V
No-Load Power Consumption Current	≤20mA
Insulation Resistance	≥50MΩ@500V DC
Dielectric Strength	AC500V/ 50Hz/60s
Electromagnetic Compatibility.	Comply with CE Standard EMC Requirements
Protective Function	Power Supply Polarity Protection, Output Short Circuit Protection
Mechanical Parameters
Measured Object	There should be protuberances or grooves on the measured body or magnetic conductive. Gear is suggested standard involute gear, modulus ≥1.5.
Measured Object	Note: Non-standard gear or unequal width between slot and flat surface will lead to a change of waveform duty ratio.
Material Under Test	Magnetic Mild Steel or Magnet
Sensor Housing Material	Integrated Stainless Steel Shell
Environmental Parameters
Operating Temperature	-40℃~+135℃
Storage and Transport Temperature	-40℃~+150℃
Relative Humidity	≤90%
High and Low Temperature Performance	High and Low Temperature Cycle Test For 10 Cycles, (Low Temperature: -40 Degrees; High Temperature: 150 Degrees), Each Placed For 30 mins, Cycle Alternately
Vibration Resistance	Vertical PSD=20g2/Hz, Transverse PSD=20g2/Hz, Longitudinal PSD=30g2/Hz, 5Hz~1200Hz, Random vibration
Impact Resistance	30g
Degree of Protection	IP67

Features

It is a single-channel speed sensor based on the Hall principle.
Reliable explosion-proof speed sensor measures the speed of gears or rotating objects through non-contact, simple, stable, and maintenance-free.
The high-quality speed sensor with voltage pulse signal and strong anti-interference ability is more suitable for harsh application environments.
Threaded installation, specifications and sizes can be customized according to customer needs. If you have a need, please get in touch with us.

Dimension (Unit: mm)

*Note for Electrical Connection:

The direct outlet of the speed sensor is equipped with a 1~2m shielded cable as standard.
Contact us for customizing the length or other mounting types (connector or cable direct outlet + connector).
3 Wires: Brown/Red - Vcc+, Black/White - Signal, Blue - Gnd

Output Signal

Applications

Tips: What is a Hall effect speed sensor used for?

Hall effect speed sensors, as described earlier, can perform several functions depending on their application. Some of the tasks they can accomplish include:

Speed measurement: Hall effect speed sensors can accurately measure the speed or rotational velocity of a moving object by detecting changes in the magnetic field generated by the object.
Position sensing: By detecting the rotation of a magnetic target or a gear with alternating magnetic poles, Hall effect speed sensors can provide position information, enabling precise control and synchronization of devices.
RPM monitoring: Hall effect speed sensors can be used to monitor the revolutions per minute (RPM) of an engine or a motor, providing feedback for performance optimization and fault detection.
Motion control: Hall effect speed sensors can be integrated into closed-loop control systems to regulate the speed of motors, conveyors, and other machinery, ensuring accurate and consistent motion.
