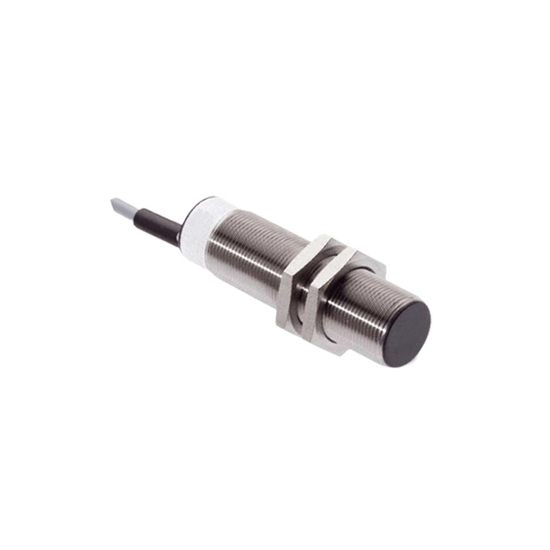

Reliable Hall speed sensors for sale online. Hall effect gear tooth sensor, M12, can measure the speed of gears or rotating objects without contact, provides an optional output signal (level pulse/NPN/PNP) and strong anti-interference ability. Stainless steel Hall effect speed sensor is ideal for harsh application environments.
| Electrical Parameters | |
| Model | RDDLZ-TSS |
| Type | Hall Effect Speed Sensor |
| Shell Shape | Threaded Cylinder |
| Shell Specifications | M12 |
| Voltage | DC 4V~30V |
| Working Frequency | 0Hz~20kHz |
| Measurement Method | Non-Contact Measurement |
| Sensing Range | Conventional: 0.5mm~3mm, Special Type: 0.5mm~7mm, Measuring Magnet: 0.5mm~30m |
| Number of Output Channels | Single Channel |
| Output Signal Type | Level Pulse, NPN, PNP |
| Mounting Type | Explosion Proof Cable Direct Outlet |
| Cable Length | 2m (Default), Contact Us for Other Options |
| Output Waveform | Rectangular Wave |
| Output Amplitude | High Level≥Power Supply -0.3V, Low Level ≤0.3V |
| No-Load Power Consumption Current | ≤20mA |
| Insulation Resistance | ≥50MΩ@500V DC |
| Dielectric Strength | AC500V/ 50Hz/60s |
| Electromagnetic Compatibility. | Comply with CE Standard EMC Requirements |
| Protective Function | Power Supply Polarity Protection, Output Short Circuit Protection |
| Mechanical Parameters | |
| Measured Object | There should be protuberances or grooves on the measured body or magnetic conductive. Gear is suggested standard involute gear, modulus ≥1.5. |
| Note: Non-standard gear or unequal width between slot and flat surface will lead to a change of waveform duty ratio. | |
| Material Under Test | Magnetic Mild Steel or Magnet |
| Sensor Housing Material | Integrated Stainless Steel Shell |
| Environmental Parameters | |
| Operating Temperature | -40℃~+135℃ |
| Storage and Transport Temperature | -40℃~+150℃ |
| Relative Humidity | ≤90% |
| High and Low Temperature Performance | High and Low Temperature Cycle Test For 10 Cycles, (Low Temperature: -40 Degrees; High Temperature: 150 Degrees), Each Placed For 30 mins, Cycle Alternately |
| Vibration Resistance | Vertical PSD=20g2/Hz, Transverse PSD=20g2/Hz, Longitudinal PSD=30g2/Hz, 5Hz~1200Hz, Random vibration |
| Impact Resistance | 30g |
| Degree of Protection | IP67 |
*Note for Electrical Connection:
Tips: What is a Hall effect speed sensor?
A Hall effect speed sensor is a type of sensor that utilizes the Hall effect phenomenon to measure the speed or rotational velocity of a moving object. The Hall effect refers to the creation of an electric potential difference, or voltage, across a conductor when it is subjected to a perpendicular magnetic field and an electric current flows through it. In the case of a Hall effect speed sensor, the moving object is typically equipped with a magnet, and as the object moves, it generates a changing magnetic field that is detected by the Hall effect sensor. The sensor then produces an electrical signal proportional to the speed of the object.
