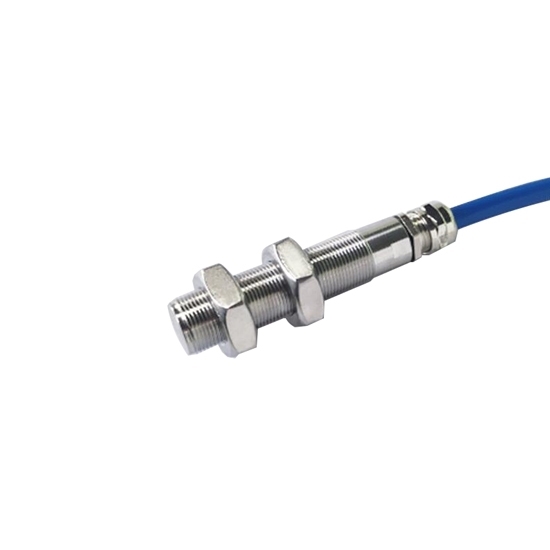

Explosion Proof Speed Sensor, M16

0 reviews • Write a review

from

$332.61

Ex Tax: $332.61

Stock: In Stock
Model: RDDLZ-EPSS-M16
Weight: 1.00
SKU: RDDLZ-EPSS-M16

Available Options

Short Description

Output Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Non-contact explosion-proof speed sensors can measure the speed of gears or rotating objects. The shell of the speed sensor is made of durable integrated stainless steel or other explosion-proof materials. Single channel, M16 threaded installation, sensor specifications and sizes can be customized according to customer needs.

Specifications

Electrical Parameters
Model	RDDLZ-TSS
Type	Explosion-Proof Speed Sensor
Shell Shape	Threaded Cylinder
Shell Specifications	M16
Voltage	DC 4V~30V (Typical Value: 24V)
Working Frequency	0Hz~20kHz
Measurement Method	Non-Contact Measurement
Sensing Range	Conventional: 0.5mm~3mm, Special Type: 0.5mm~7mm, Measuring Magnet: 0.5mm~30m
Number of Output Channels	Single Channel
Output Signal Type	Level Pulse, NPN, PNP
Mounting Type	Explosion Proof Cable Direct Outlet
Explosion-proof Cable	2m (Default), Contact Us for Other Options
Output Waveform	Rectangular Wave
Output Amplitude	High Level≥Power Supply -1V, Low Level ≤0.5V
No-Load Power Consumption Current	≤20mA
Insulation Resistance	≥50MΩ@500V DC
Dielectric Strength	AC500V/ 50Hz/60s
Electromagnetic Compatibility.	Comply with CE Standard EMC Requirements
Protective Function	Power Supply Polarity Protection, Output Short Circuit Protection
Explosion-Proof Performance	Intrinsically Safe Explosion-Proof
Explosion-Proof Grade	Ex(ia) II CT6 Ga
Mechanical Parameters
Measured Object	There are protrusions or grooves on the gear or the object to be measured.
Material Under Test	Magnetic Mild Steel or Magnet
Sensor Housing Material	Integrated Stainless Steel Shell
Tensile Strength	The cable exerts a tension of 30N@60min, and there is no displacement with the shell.
Environmental Parameters
Operating Temperature	-40℃~+135℃
Storage and Transport Temperature	-40℃~+150℃
Relative Humidity	≤90%
High and Low Temperature Performance	High and Low Temperature Cycle Test For 10 Cycles, (Low Temperature: -40 Degrees; High Temperature: 150 Degrees), Each Placed For 30 mins, Cycle Alternately
Vibration Resistance	X, Y, Z Direction, 30g/Hz, 5Hz~1200Hz, Random Vibration
Impact Resistance	30g
Degree of Protection	IP67

Features

It has passed the explosion-proof laboratory product certification.
Reliable explosion-proof speed sensor measures the speed of gears or rotating objects through non-contact, simple, stable, and maintenance-free.
Equipped with integrated stainless steel and explosion-proof connecting cable, the high-quality speed sensor is more suitable for harsh applications and explosion-proof requirements.
Threaded installation, specifications and sizes can be customized according to customer needs. If you have a need, please get in touch with us.

Dimension (Unit: mm)

*Note for Electrical Connection:

The direct outlet of the speed sensor is equipped with a 1~2m explosion-proof cable as standard.
Contact us for customizing the length or other mounting types (connector or cable direct outlet + connector).
3 Wires: Brown/Red - Vcc+, Black/White - Signal, Blue - Gnd

Output Signal

Applications

Tips: What is a non-contact speed sensor?

A non-contact speed sensor, as the name suggests, is a type of sensor that can measure speed without physical contact with the moving object. This is often desirable in applications where contact-based sensors may introduce friction, wear, or other complications. Non-contact speed sensors can utilize various technologies such as optical sensors, magnetic sensors, or ultrasonic sensors to measure speed without direct contact with the object.
