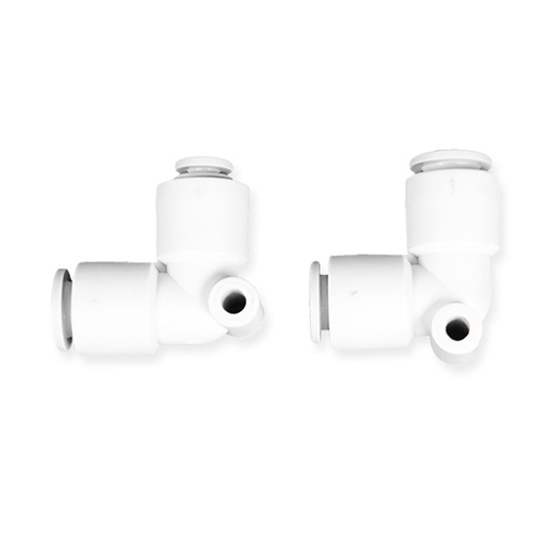

Water Line Quick Connector, Intubation Type

0 reviews • Write a review

from

$3.36

Ex Tax: $3.36

Stock: In Stock
Model: RDDLZ-QC-I06
Weight: 1.00
SKU: RDDLZ-QC-I06

Available Options

Short Description

Input/Output Cannula Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Well sealed quick connector can connect to hoses in seconds. It is an intubation type, supply for water and air. The wear-resistant plastic shell makes quick connect fitting more smooth. 04~16 mm input cannula diameters for selection. Faster connectors are widely used for all kinds of watering equipment, such as sprinklers, sprayers, sprinklers, etc.

Specifications

Model	RDDLZ-KQ2L
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ4, Φ6, Φ8, Φ10, Φ12, Φ16

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Φ4	RDDLZ-KQ2L04-00	6
Φ6	RDDLZ-KQ2L06-00	6
Φ8	RDDLZ-KQ2L08-00	10
Φ10	RDDLZ-KQ2L10-00	17
Φ12	RDDLZ-KQ2L12-00	21
Φ16	RDDLZ-KQ2L16-00	29

Tips: How to use the air hose quick contact?

After cutting off the air hose and removing the burr, insert one end of the air hose into the connector socket(which must be inserted to the bottom)to achieve a solid connection and seal.
When disassembling the tubing, use your thumb to press the connector ferrule in and pull out the tubing.
After repeatedly pulling out the tubing, the end of the tubing should be cut off. The worn end should be cut off. Repair and continue to use.
After installation of the end pipe fittings such as right angle, tee, four-way, etc., only rotate the fitting body to adjust the receiver direction of the fitting.
