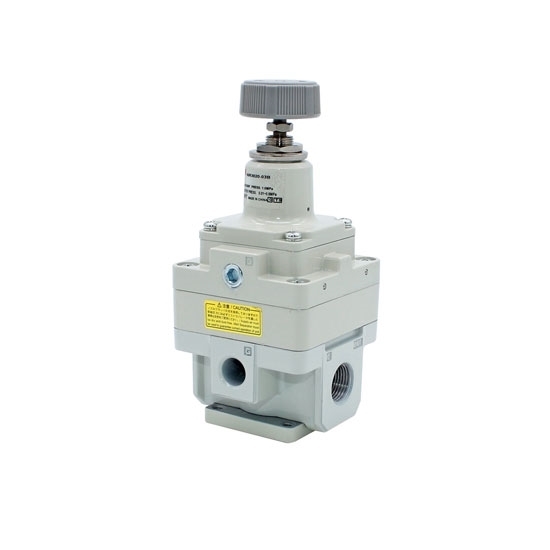

1/2 Inch Rc Air Pressure Regulator

1/2 Inch Rc Air Pressure Regulator
1/2 Inch Rc Air Pressure Regulator
0 reviews • Write a review
from
$205.67
Ex Tax: $205.67
  • Stock: In Stock
  • Model: RDDLZ-PR-NIR3000
  • Weight: 1.00
  • SKU: RDDLZ-PR-NIR3000

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Pneumatic regulator with sensitive air pressure gauge, port size optional 1/2", 3/8" or 1/4", large output flow and overflow flow, g and NPT threads can be customized.

Specification

  • Model: RDDLZ-PR-NIR3000
  • Sensitivity: Within 0.2% of full span
  • Repeatability: Within ±0.5% of full span
  • Minimum Supply Pressure: Set pressure +0.05 Mpa
  • Set Pressure: 0.01~0.2/ 0.01~0.4/ 0.01~0.8 Mpa
  • Pressure Regulator Port Size: 1/4, 3/8, 1/2 inch Rc
  • Air Consumption: 11.5 L/min (ANR) or less
  • Ambient and Fluid Temperature: –5 to 60°C (No freezing)
  • Supply Pressure: 1.0 MPa
  • Weight: 1 kg
  • Certificate: CE

Note: Air filter (AF) and oil mist separator (AM, AFM) need to be installed on the air supply side.

1/2 Inch Air Pressure Regulator Dimension (Unit: mm)


1/2  Inch Rc Pneumatic Regulator Detail



Tips: Features of RDDLZ-PR-NIR3000 air pressure regulator

  • Small size and light weight.
  • Precise pressure setting.
  • The tooth spacing of the adjusting screw is changed from the traditional 0.75mm to 0.5mm
  • Easy to install, can be installed independently with brackets or combined with existing modular filters
  • AF and AFM can be installed directly.
  • Standard outgoing panel mount.
  • The pilot exhaust port is separate from the main exhaust port.
  • Can be used in clean room (specially noted product).
  • The RDDLZ-PR-NIR3000 has a larger output flow than the traditional precision pressure reducing valve RDDLZ-PR-NIR2000.
  • RDDLZ-PR-NIR3000 has larger overflow flow than traditional precision pressure reducing valve RDDLZ-PR-NIR2000.
