DC Current Sensor, 1mA-5A Input, 12mA/10mA Output

0 reviews • Write a review

from

$134.92

Ex Tax: $134.92

Stock: In Stock
Model: RDDLZ-CUS-153S01
Weight: 1.00
SKU: RDDLZ-CUS-153S01

Available Options

Short Description

Power

Output

Input Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

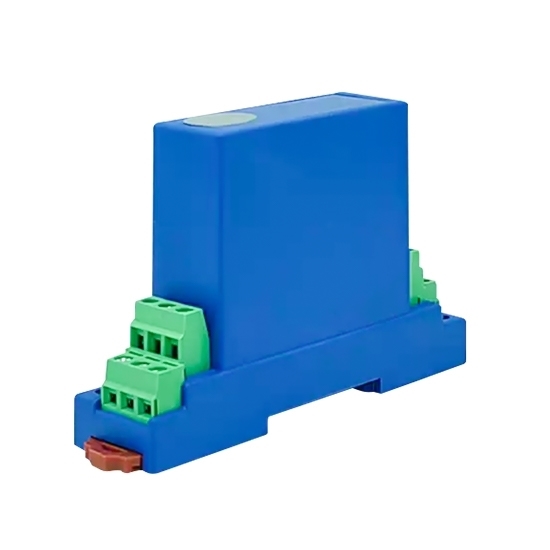

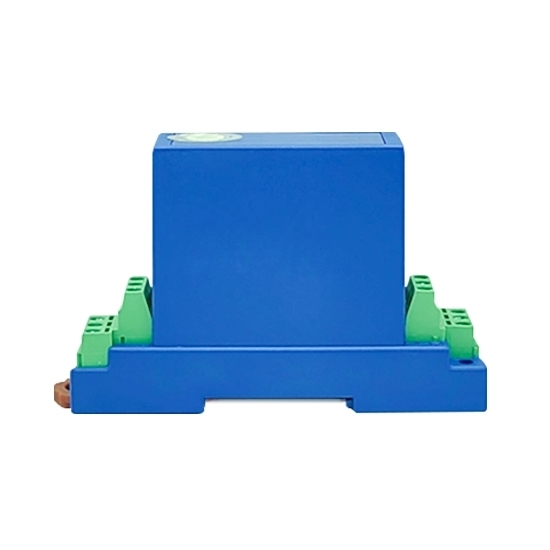

The DC current sensor supports input from 1mA to 5A and offers output options of 12±8mA or 10±10mA, with a 6V load capacity. Powered by DC +12V, +15V, or +24V, it is ideal for monitoring bidirectional DC current in power systems, battery management, and renewable energy.

Specification

Model	RDDLZ-WBI153S01
Input Current	DC 1mA, 5mA, 20mA, 50mA, 0.1A, 0.2A, 0.5A, 1A, 2A, 5A (Customizable, 10 times rated input current) (optional)
Allowable Overload	10 times the rated input current, sustained for 1 second, with a 300-second interval, repeatable 5 times
Linear Measurement Range	0%~120% of rated input
Input Impedance	200mV/Ix (where Ix represents the measured current)
Output Type	DC 12±8mA, 10±10mA (optional)
Load Capacity	6V
Auxiliary Power	DC +12V, +15V, +24V
Accuracy Class	0.5
Response Time	≤350ms
Environmental Temperature	-25°C ~ +70°C
Static Current	≤33mA
Weight	<100g

Note: Other parameters contact customer service.

Feature

Frequency Modulation & Optical Isolation Principle: Utilizes advanced frequency modulation and optical isolation techniques to provide real-time measurement of bidirectional DC current, ensuring high accuracy and isolation.
Bidirectional Tracking Current Output: Converts bidirectional DC current into a zero-point shifted, bidirectional tracking current (IG) output for precise monitoring.
High Precision & Isolation: Delivers accurate measurements with superior isolation, making it ideal for sensitive electrical applications.
Low Power Consumption & Low Drift: Designed for low power consumption and minimal temperature drift, enhancing long-term performance and stability.
Fast Response Time: Equipped with a fast response time, ensuring rapid data updates for real-time monitoring.
Wide Temperature Range: Operates efficiently across a wide temperature range, ensuring reliability in diverse environmental conditions.
Modular Design: Features a modular, snap-in design for easy and quick installation, reducing integration time.
Reliable Terminal Wiring: Utilizes terminal connections with secure and stable wiring, especially effective in vibration-prone environments.
Ideal for Bidirectional DC Current Monitoring: Specifically designed for isolating and tracking bidirectional DC current in power systems, battery management, and renewable energy applications.

Wiring Method

Application

Tips: How does the sensor handle bidirectional current flow?

The DC Current Sensor is designed to accurately measure bidirectional current flow, meaning it can track both the charging and discharging currents in systems such as battery management or renewable energy setups. It detects the direction of current flow and outputs a corresponding signal, providing real-time feedback on both positive and negative current flows. This bidirectional capability is essential for monitoring energy flow in applications where current alternates between charging and discharging modes, ensuring precise measurement and control in energy storage systems, power distribution, and other dynamic environments.
