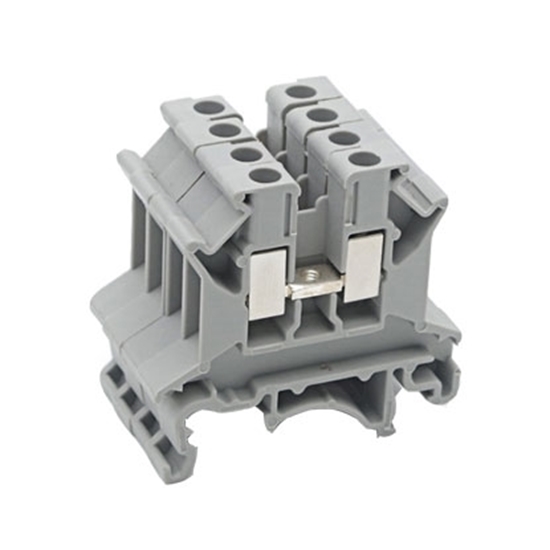

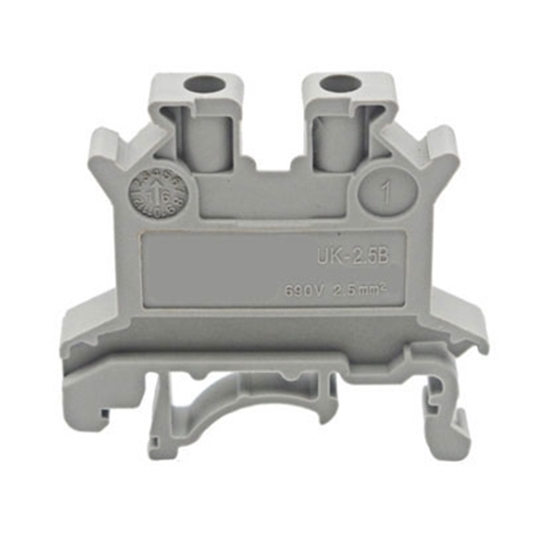

32A DIN Rail Terminal Block, 800V

0 reviews • Write a review

from

$3.98

Ex Tax: $3.98

Stock: In Stock
Model: RDDLZ-TB-UK-2.5B
Weight: 1.00
SKU: RDDLZ-TB-UK-2.5B

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Electrical terminal connector block, 800V rated voltage, 32 Amp, ideal for industrial power distribution equipment and control panel wiring applications.

Specifications:

Model	RDDLZ-TB-UK-2.5B
Dimension	42.5mm6.2mm41mm (WTH)
Screw Nominal Diameter	M3 mm
Torsion Torque	0.5~0.7 Nm
Stripping Length	8 mm
Rated Voltage	800V
Rated Current	32A
Section Area of Conductor	2.5 mm2
Rigid Conductor	1.0~4 mm2
Flxible Conductor	10-2.5 mm2
Applicable Rail Mounting Feet	G32-15L18/15, TH35-7.5
Certificate	CE, UL, Rohs
Weight	100 Pcs/1kg

Tips: How to connect the UK2.5B terminal?
The RDDLZ-TB-UK2.5B line has a capacity of 0.25-2.5 square millimeters. The tools required for wiring are M3 slotted screwdrivers, manual and electric. The length of the stripped wire is 0.8cm. Insert it into the tube-type cold-pressed end, crimp it with crimping pliers, then insert it into the UK2.5B terminal crimping frame, and lock it with a screwdriver. The hard wire can be directly connected to the locking screw without using a cold-pressed end.
