2.5 KW Servo Motor, Water Cooled, 380V, 8 Nm, 3000 Rpm

2.5 KW Servo Motor, Water Cooled, 380V, 8 Nm, 3000 Rpm
2.5 KW Servo Motor, Water Cooled, 380V, 8 Nm, 3000 Rpm
0 reviews • Write a review
from
$937.69
Ex Tax: $937.69
  • Stock: In Stock
  • Model: ATO130SY-M08030HS1
  • Weight: 1.00
  • SKU: ATO130SY-M08030HS1

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

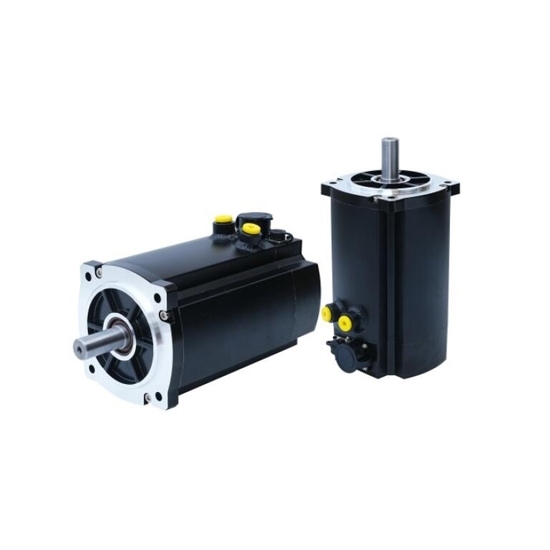

Hot sale 2500W AC servo motor comes with a rated voltage of 380V, a rated torque of 8 N.m, and a rated speed of 3000 rpm. This liquid-cooled servo motor is commonly used in robotics, automation, manufacturing, and so on.

Specifications

  • Model: RDDLZ130SY-M08030HS1
  • Rated Power: 2.5kW
  • Rated Voltage: 380V
  • Rated Current: 10.5A
  • Rated Torque: 8 N.m
  • Maximum Torque: 16 N.m
  • Rated Speed: 3000 rpm
  • Maximum Speed: 6000 rpm
  • Rotor Inertia: 0.85X10-3 kg.m2
  • Weight: 12.6kg
  • Length: 243mm

Dimension (Unit: mm)

Winding Wiring

Winding LeadUVWPE
(Aviation Plug) Socket Number2341


Encoder Wiring

Signal DefinitionE-E+SD-GNDSD+VccPE
Socket Number2345671

Details

Tips: What is a water-cooled servo motor?

The water-cooled servo motor is an advanced type of servo motor that uses water as a coolant to manage and dissipate the heat generated during its operation. Unlike traditional air-cooled motors, water-cooled servo motors have an internal cooling system where water circulates through channels or jackets around the motor's stator and other critical components. This method of cooling offers several advantages.

Firstly, water-cooling is highly efficient at removing heat, allowing the motor to maintain optimal performance even under high loads and continuous operation. This makes water-cooled servo motors ideal for applications requiring high power density and precision, such as in robotics, CNC machinery, and industrial automation.

Secondly, the effective cooling reduces the motor's thermal stress, leading to longer operational life and improved reliability. It also allows the motor to operate at higher speeds and torques without overheating, enhancing overall productivity.

Lastly, water-cooled servo motors can be more compact than their air-cooled counterparts since the efficient cooling system reduces the need for large external heat sinks or fans. This compactness is beneficial in space-constrained applications.

Overall, water-cooled servo motors provide superior performance, efficiency, and durability, making them suitable for demanding industrial environments where precision and reliability are crucial.
