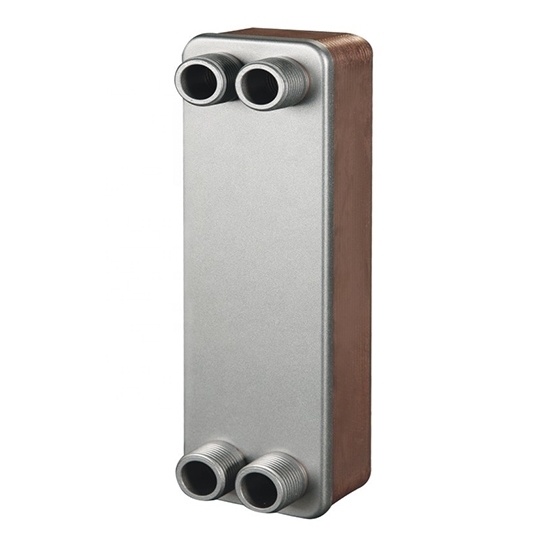

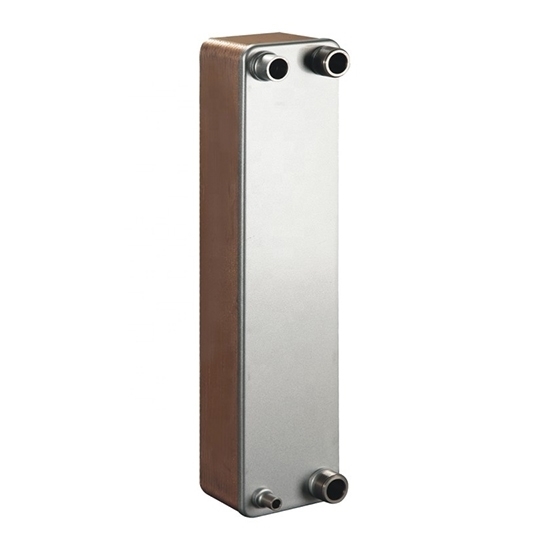

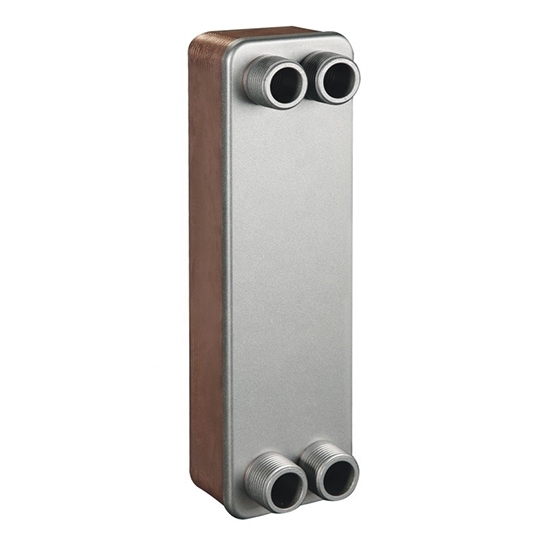

Brazed Plate Air To Air Heat Exchanger, 150 Plate

0 reviews • Write a review

from

$839.23

Ex Tax: $839.23

Stock: In Stock
Model: RDDLZ-PHE-150
Weight: 1.00
SKU: RDDLZ-PHE-150

Available Options

Heat Exchange Capacity (BTU)

Plate Quantity

Design Pressure

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Medium flow direction is counter flow (the primary and secondary flow direction is parallel and opposite).

Application: Brazed plate heat exchanger can be used in low temperature test equipment, refrigeration equipment, chiller, air conditioner, oil cooling, laser equipment, solar equipment, heat pump units, heating water heaters and other fields. Channel type combinations and distributor configurations are also available for selection or customization.

Note: Non-standard customized products, for different plate quantities, price is different, the page price is for reference only. Please contact us for specific price.

Specification

Model		RDDLZ-PHE-028	RDDLZ-PHE-030	RDDLZ-PHE-052	RDDLZ-PHE-060
Max Quantity of Plates		150	150	150	150
Heat Exchange Capacity	BTU	17k~51k	10k~102k	34k~240k	68k~320k
Heat Exchange Capacity	W	5k~15k	3k~30k	10k~70k	20k~95k
Heat Exchange Area/Per Plate		0.028m²	0.030m²	0.052m²	0.060m²
Volume/Per Channel		0.05L	0.028L	0.094L	0.111L
Plate Thickness		0.4mm	0.3mm	0.4mm	0.3mm
Max Flow		5.0 m³/h	8.0 m³/h	18 m³/h	22 m³/h
Channel*		H, L, M	H	H, L, M	H
Designed Pressure		3.0/4.0 MPa	3.0/4.5 MPa	3.0/4.5 MPa	3.0/4.5 MPa
Size		311*111mm	325*95mm	527*111mm	527*120mm
Weight (kg, n is the plates quantity)		1.2+0.1n	1+0.09n	1.8+0.23n	2.4+0.195n
Liquid Side Maximum Threaded		1"1/4	1"	1"1/4	1"1/4
Fluorine Side Maximum Thread		1"3/8	1"1/8	1"3/8	1"3/8
Distributor		-	HQ	HQ, LQ, MQ	HQ
Medium Flow Direction		counter flow
Certification		CE
Designed Temperature		-196℃~+200℃

*Channel Form Characteristics

L channel: low heat transfer coefficient, low resistance, suitable for large flow rate and weak heat transfer (low specific heat or small temperature difference), such as air heat transfer under ambient pressure.

H channel: high heat transfer coefficient, high resistance, suitable for small flow rate and strong heat transfer (high specific heat, with phase change or large temperature difference), such as refrigerant phase change heat transfer.

M channel: heat transfer coefficient and resistance are between H channel and L channel.

Dimension Diagram of 150 Plate Brazed Plate Heat Exchanger (unit: mm)

Calculation method of size A
Model	RDDLZ-PHE-028	RDDLZ-PHE-030	RDDLZ-PHE-052	RDDLZ-PHE-060
A (mm)	11+2.3n	11+1.55n	11+2.4n	11+2.3n
A (mm)	9+2.3n	9+1.55n	9+2.4n	9+2.3n

Tips: Structure of the brazed plate heat exchanger.

Brazed plate heat exchanger consists of a group of plates (the adjacent plates form an angle of 180 ° with each other) superpose in order, form a plate package with channel form.
Both ends of the heat exchanger are respectively provided with a sealing plate with pipe.
The whole plate heat exchanger is made by vacuum brazing.
Adjacent channels respectively flow two medium.
Plates between adjacent channels are pressed into corrugated pattern to strengthen heat exchange between the two medium.
In refrigeration BPHE, water channel is always one more than refrigerant channel.
