- Stock: In Stock
- Model: RDDLZ-RDP-2650LPM
- Weight: 1.00
- SKU: RDDLZ-RDP-2650LPM

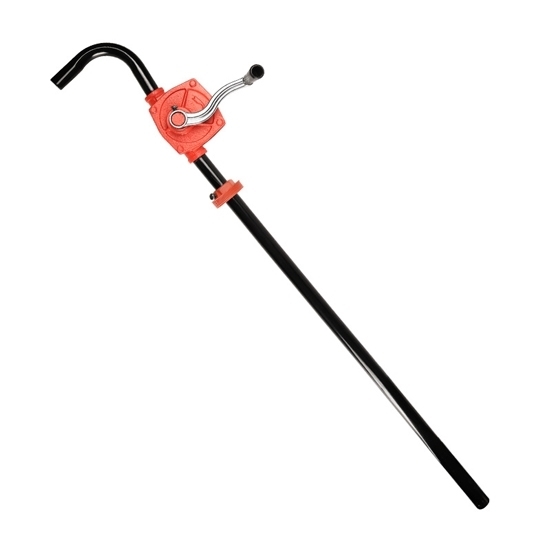

Hand operated rotary barrel pump is a manual device designed for transferring liquids from barrels, drums, and other large containers. This hand crank rotary pump is suitable for pumping oil, diesel, fuel, and gasoline.
Specification
| Model | RDDLZ-25MM-CI | RDDLZ-32MM-CI |
| Type | Hand Operated Pump | |
| Material | Cast Iron | |

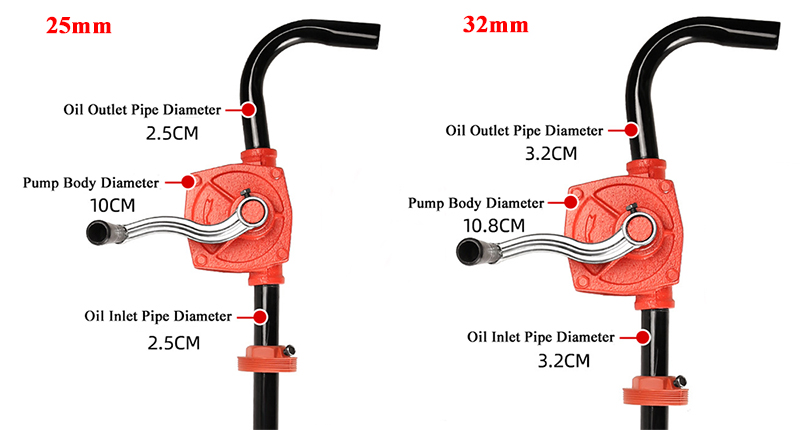

| Oil Inlet Diameter | 25mm (1 inch) | 32mm (1-1/4 inch) |
| Oil Outlet Diameter | 25mm (1 inch) | 32mm (1-1/4 inch) |
| Total Length | 1300mm | 1290mm |
| Flow Rate | 26 L/min | 50 L/min |
| Number of rotations | 70 rpm | 65 rpm |
| Liquids Can be Pumped | Gasoline, Diesel, Engine Oil, Hydraulic Oil, Kerosene, Edible Oil and Other Oil Solutions | |
| Weight | 2.23kg | 2.7kg |
Note:
- Don't pump water or non-oil solvents.
- Don't use water to clean the main pump body.
Detail
Tips: Hand rotary barrel pump working principle
A hand rotary barrel pump is a manually operated device designed to transfer liquids from barrels or drums. It operates through a simple rotary action. The key components include a pump body, a rotating handle, an intake tube, and a discharge spout.
When the handle is turned, an internal rotor or gear mechanism within the pump body rotates. This rotation creates a suction effect that draws the liquid up through the intake tube from the barrel. As the handle rotates, the liquid is pushed through the pump and out of the discharge spout.
The manual rotary drum pump relies on the handle's continuous turning to maintain the liquid flow. It's commonly used for transferring fuels, oils, and other non-corrosive liquids, offering a straightforward, portable, and efficient solution for fluid transfer in various industrial and commercial applications.
