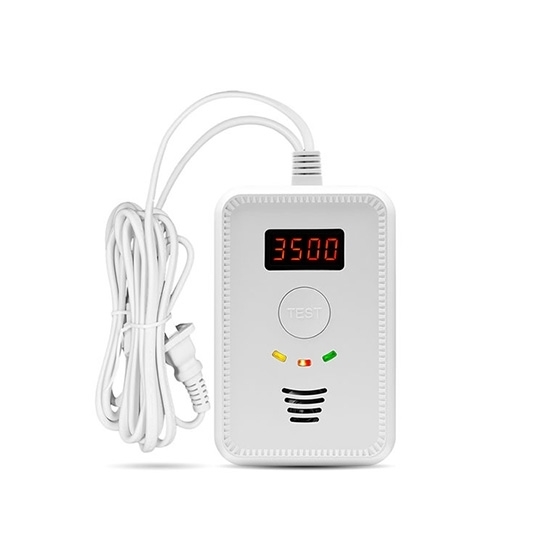

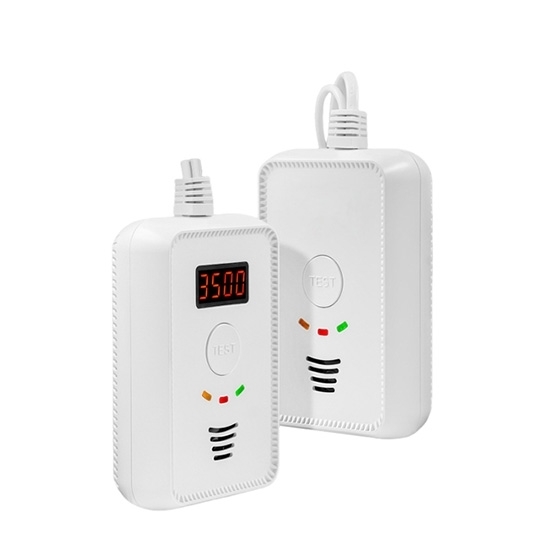

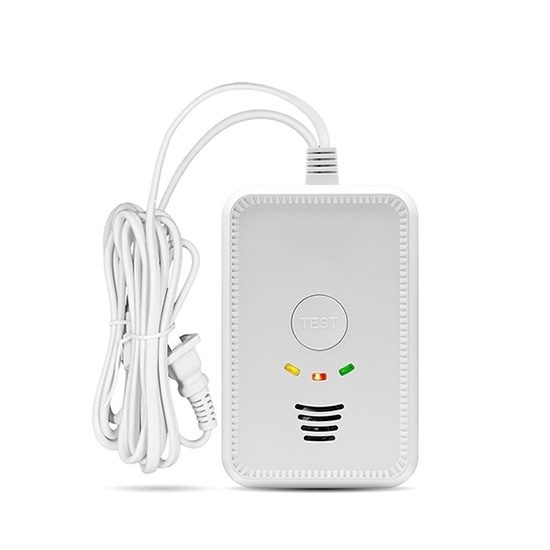

Smoke & Gas Detector For Home, Combustible Gas Alarm

0 reviews • Write a review

from

$58.26

Ex Tax: $58.26

Stock: In Stock
Model: RDDLZ-SD-SR918
Weight: 1.00
SKU: RDDLZ-SD-SR918

Available Options

Specification

Socket

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Smoke and gas detector for home is a smart combustible gas detector with microprocessor control. It will make a sound with the build-in siren when the gas leaking. The combustible gas alarm uses semiconductor sensor which is stable and reliable. It keeps the place safe from the threats of combustible gas. (Such as liquefied petroleum gas, natural gas, methane, etc.)

Features

Home smoke and gas detectors are equipped with high-reliability sensors to ensure accurate and stable detection performance.
Wall-mounted smoke and gas detectors provide sound and flash alarm systems, or optional human voice alarms to issue warning signals in time.
It can be equipped with solenoid valve outputs to automatically cut off the gas supply when danger is detected, increasing safety.
Smoke and gas detectors for home have the function of automatically detecting sensor failures, which can instantly identify and report sensor problems.
The combustible gas alarms can detect natural gas and liquefied petroleum gas (LPG), providing comprehensive gas monitoring protection.
It adopts SMT design, which improves the stability and durability of the equipment.

Specification

Model		RDDLZ-SR-918-NS/NV
Operating Voltage		AC 90~240V
Static Current		90mA
Alarm Current		100mA
Rating Power		3W
Warm-up Time		About 180s
Alarm Level		7±3%LEL, 3500±1000ppm
Alarm Indicator		Red LED flash
Failure Indicator		Yellow LED on & beeper long-buzz
Sound Level		85dB/m
Operating Temperature		-10~50℃
Installation Mode		Wall mounted
Alarm Output		Sound & flash alarm
Outline Size		15511045mm
Model		RDDLZ-SR-918-NSY/NVY
Operating Voltage		AC 90~240V
Warm-up Time		About 180s
Alarm Level	Combustible gas	7±3%LEL, 3500±1000ppm
	Carbon monoxide gas	30ppm, alarm after two hours
		50ppm, alarm within 60~90 minutes
		100ppm, alarm within 10~40 minutes
		300ppm, alarm within 3 minutes
Sound Level		85dB/m
Operating Temperature		-10~50℃
Installation Mode		Wall mounted
Outline Size		15511045mm

Product Function Comparison

Model	SR-918-NS	SR-918-NV	SR-918-NSY	SR-918-NVY
LCD Display	no	no	yes	yes
Voice Alarm Function	no	no	yes	yes
Solenoid Valve Compatible	no	yes	no	yes

The voice function is a human voice alarm (default English). If you need to change it to just beep the alarm, you can contact us.

Dimension (mm)

LED Information

Model	RDDLZ-SR-918-NS/NV	Model	RDDLZ-SR-918-NSY/NVS
Indicator status	LED indicator	Indicator status	LED indicator
Preheating state	Green light flash	Preheating state	Green light flash
Standby mode	Green light on	Standby mode	Green light on
Gas Leaking	Red light flash	CO & Gas alarm	Red light flash
Sensor Fault	Yellow light on	CO & Gas fault	Yellow light on

Details

Applications

Tips: Operating instructions for home smoke and gas detector

With AC 90~240V power supply, the green LED flashes once a second for about 3 minutes continuously, that runs the inside sensor (warm-up state). After doing that the green LED lights, that means the detector comes into normal working state.
While detecting the gas leaking, the red LED flashes, the Buzzer sends out the alarm sound "Di Di", and output the network signal. If the detector is connected with valve, it will drive them to shut off the gas pipeline supply. The detector will resume to the detecting state after the gas dispersed.
The buzzer long beeps and the red LED ON means the inside sensor failure. Please cut off the power, and contact us.
If the detector runs disorderly, cut the power off and rerun again. If still in wrong, please contact us.
