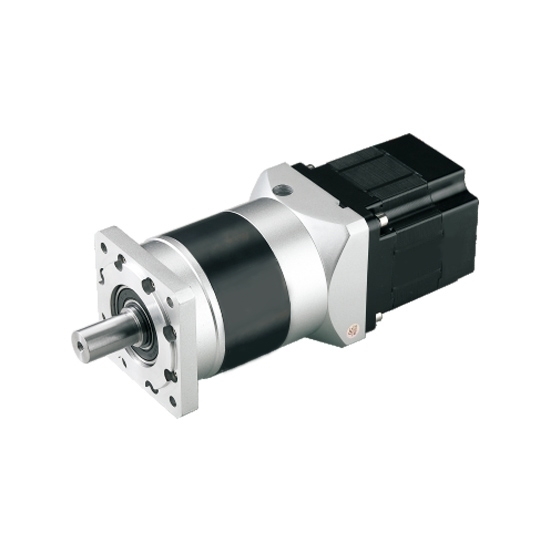

Low price 200 watt DC planetary gear motor for sale online, optional 12V, 24V, 36V or 48V power supply, gear ratio from 4:1 to 250:1, rated speed 3000 rpm, rated torque 0.64Nm, motor dimension 86mm, brushless design for electric car and industrial equipment.

Features:

• 12V, 24V, 36V, 48V DC are available.
• The planetary gearbox ratio is up to 250:1.
• Power, voltage, speed, shaft, motor length and lead can be customized.
• BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
• Planetary gear motor provides high torque at low speeds.
• Easy for speed adjustment and reversible direction.

Specifications:

Note: If you would like CAD drawings of the motor and planetary gearbox, please contact us.

Speed-torque curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: What are the factors considered in the selection of gear reducer motors?

• What is the geared motor used in the equipment? This has to take into account the specifications (size, shape) of the geared motor and the installation method.
• Consider the application environment. For example, special environments such as large temperature difference between day and night, high temperature, cold, corrosiveness, and sealing (rainproof).
• Consider power, including detailed transmission methods such as current, voltage, speed, reduction ratio, transmission ratio, torque, load capacity, noise, transmission efficiency (transmission mode), and number of stages.
• For the verification of the radial force and axial force of the output shaft of the geared motor, the manufacturer shall provide reference standards for the axial force and radial force.
