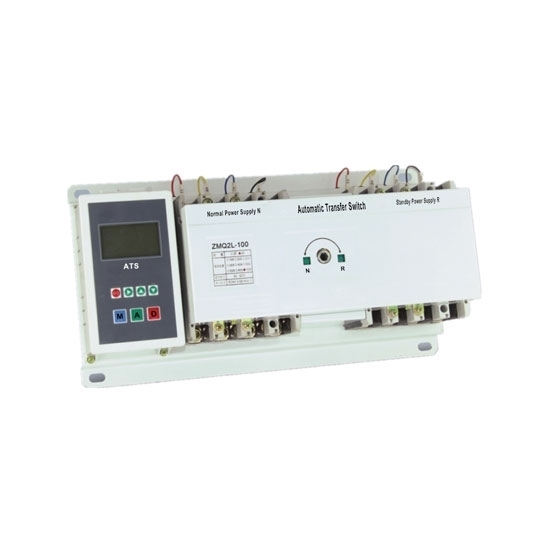

Automatic Transfer Switch, 3/4 Pole, 100/125 To 225 Amps

0 reviews • Write a review

from

$574.61

Ex Tax: $574.61

Stock: In Stock
Model: RDDLZ-ATS-225
Weight: 1.00
SKU: RDDLZ-ATS-225

Available Options

Short Description

Rated Current Ie (Amps)

Number of Poles

ATS Structure Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Suitable for 400V AC 50Hz power supply system with rated working current 100A, 125A, 140A, 160A, 180A, 200A, 225A.
This ATS is an intelligent self-protection transfer switch mainly including two parts - microcomputer controller and transfer switch.
With automatic and manual operation, machinery and electrical double interlock feature.
ATS has three switching position for options: common power ON, dual power OFF, standby power ON.
Small size, light weight, stable performance, reliable operation and easy to use.
Applied for residential areas, military facilities, hospitals, shopping malls, airports and so on.

Specification

Model		RDDLZ-ZMQ2F/L-225
Frame Current		225A
Rated Operating Current (Optional)		100A, 125A, 140A, 160A, 180A, 200A, 225A
Number of Poles (Optional)		3-pole	4-pole
Breaking Current		22kA	30kA
Rated Operating Voltage		400V AC
Insulation Voltage		2500V, no flicker and no breakdown for one minute
Frequency		50/60Hz
Delay Time		0-30s (Adjustable)
Controller Rated Working Voltage		230V AC
Mechanical Life		5,000 times
Structural Type (Optional)		Integral type (F) or split type (L)
Environment	Altitude	≤2000m
	Ambient Temperature	-5℃~+40℃, the 24-hour average temperature does not exceed +35℃
	Relative Humidity	RH≤50% @ +40℃; at a lower temperature, it is allowable to have a higher humidity. Please pay more attention to the condensation produced on the product surface with the change of humidity.
	Installation	No explosive medium, and no medium of gas and dust is enough to corrode and damage the insulation. No significant shock and vibration.
Standards		Compliance to IEC6094-6-1, GB14048.11-2008
Protection Class		IP30
Weight		10.2kg	11.5kg
Dimensions		See below

Details

ATS Dimensions (Unit: mm)

Type	W	W1	L	L1	H
ZMQ2F/L-225/3P	430	395	215	195	140
ZMQ2F/L-225/4P	545	510	215	195	140

Wiring Diagram

* The above wiring diagram is just for your reference. With the different types and functions, the wiring is also different.
* When the fire takes place, EPS signal is on (provided by firefighting center) and the circuit breakers Q1 & Q2 is released or cut off.
* Q1 & Q2 refer to circuit breakers.
* KG refers to the wiring terminals.
* The R & N power ON indicator lamps are external (provided by users).
* The dashed part is supplied by users.

* 3P refers to 3-pole circuit breaker and 4P means 4-pole circuit breaker.
* 24VDC (external) is supplied by the fire control center.

Tips: Structure of automatic transfer switch

The automatic switch has a wide range of applications, such as elevators, banks and hospitals, where the power failure is absolutely unwanted. Once the power is cut off, it will cause huge economic losses and even endanger human safety.

The automatic switch is mainly composed of a controller, a conversion mechanism and a body. The controller is very important, which is the same as the brain of the automatic changeover switch. It can control the switching between the two power sources. The conversion mechanism is composed of a drive mechanism and a transmission mechanism. Its role is to achieve non-stop disconnection and connection, and also determine the mechanical reliability of the automatic transfer switch. As for the body of ATS transfer switch, it is composed of contacts, contact mechanism and arc extinguisher, which directly determines the switch electrical characteristics.
