370W Stainless Steel Motor, 3 Phase, B3/ B5/ B14

0 reviews • Write a review

from

$686.08

Ex Tax: $686.08

Stock: In Stock
Model: RDDLZ-IEC-631
Weight: 1.00
SKU: RDDLZ-IEC-631

Available Options

Voltage

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

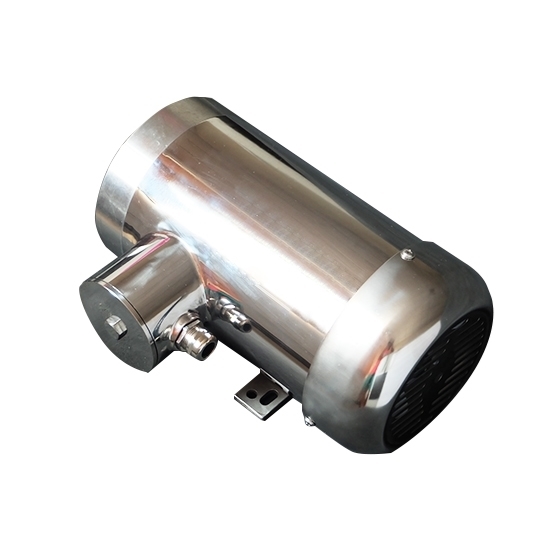

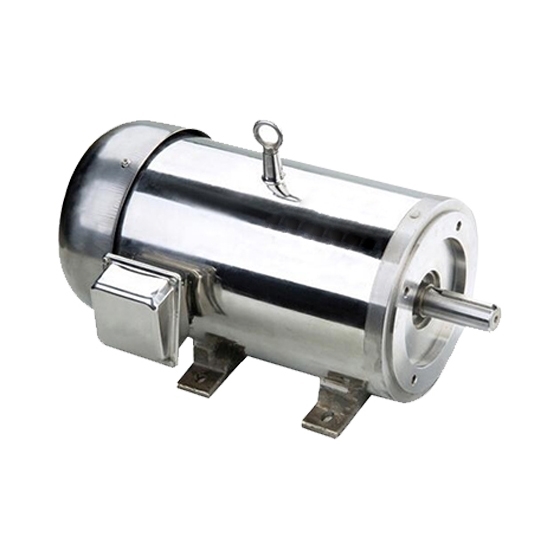

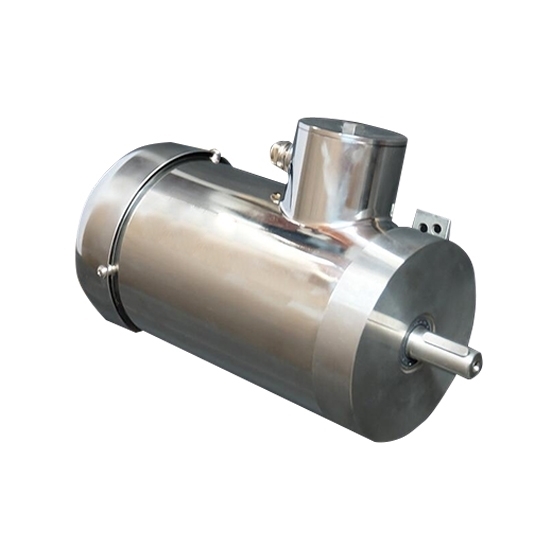

370 watt stainless steel pump motor with 2 pole, three phase, CE, UL certificates and IP65 protection grade. The stainless motor is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.

Features

Smooth stainless steel enclosures easy to clean and sanitize.
IP65 for water protection rating ensures suitability for clean in place washdown procedures.
Encapsulated windings prevent any water and moisture from reaching the windings.
Low surface temperature with less operation costs due to high efficiency.

Specification

Model	RDDLZ-IEC-631
Rated power	370W
Rated voltage	208V~230V/ 460V
Number of pole	2P
Phase	3 phase
Cooling method	TENV
Frequency	50/ 60Hz
Raged speed	2950r/min
Mounting type	B3/ B5/ B14
Stainless steel	304
Protection grade	IP65
Insulation class	Class F
Protect Feature	Waterproof
Efficiency	IE 4
Weight	21kg
Certificate	CE, UL
Warranty	12 months

Dimension

Mounting type	Frame size	Mounting dimensions (mm)
Mounting type	Frame size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	Flange Hole	Shaft Hole	AB	AC	AD
B3	63	100	50	80	40	11	23	4	8.5	63	7	-	-	114	-	-	-	-	M4	125	114	117
B14		-	-	-	-	11	23	4	8.5	-	-	75	60	90	0	M5	2.5	4	M4	-	114	117
B5		-	-	-	-	11	23	4	8.5	-	-	115	95	140	0	10	2.5	4	M4	-	114	117

Details

Tips: What is Stainless Steel Motor?

Stainless steel motor is an electric drive device that converts electrical energy into mechanical energy. It is mainly composed of the stator, the rotor and the air gap between them. After the stator winding is connected to the three-phase AC power supply, a rotating magnetic field is generated and the rotor is cut to obtain torque. Stainless steel motors have the advantages of simple structure, reliable operation, low price, strong overload capacity, and convenient use, installation, and maintenance. Stainless steel electric motor is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.
